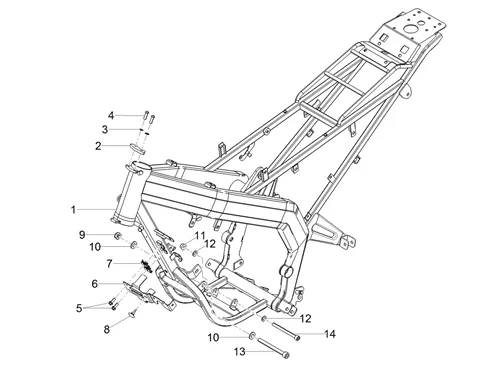

Vehicle Exploded View - APRILIA SX 50 E4 2018-2019-2020 (EMEA) APRILIA

Chassis : 01.01 CHASSIS
Chassis
Search
2B004223000XHE - CHASSIS

1
P2R reference P2R reference 151682
Maker reference Maker reference 2B004223000XHE

FRAME OEM APRILIA 50 RX, SX 2018 >-2B004223700XHE

More information

Quantity required : 1

PLATE ARRET DE BRAQUAGE OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-2B004240

2
P2R reference P2R reference 149376
Maker reference Maker reference 2B004240

PLATE ARRET DE BRAQUAGE OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-2B004240

More information

Quantity required : 1

WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830

3
P2R reference P2R reference 109834
Maker reference Maker reference 658830

WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-2B004031

4
P2R reference P2R reference 142492
Maker reference Maker reference 2B004031

SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-2B004031

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

5
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 2

BRACKET DE CADRE OEM DERBI 50 SENDA 2018 >/GILERA SMT 2018 >/APRILIA RX, RX 2018 >-2B004291

6
P2R reference P2R reference 149377
Maker reference Maker reference 2B004291

BRACKET DE CADRE OEM DERBI 50 SENDA 2018 >/GILERA SMT 2018 >/APRILIA RX, RX 2018 >-2B004291

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

8
P2R reference P2R reference 71383
Maker reference Maker reference AP8120001

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

9
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 1

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

10
P2R reference P2R reference 71811
Maker reference Maker reference AP8150020

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

11
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

More information

Quantity required : 1

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

12
P2R reference P2R reference 71809
Maker reference Maker reference AP8150017

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

More information

Quantity required : 2

SCREW BTR (10X100) OEM PIAGGIO COMMON A LA RANGE-00H03000272

13
P2R reference P2R reference 64748
Maker reference Maker reference 00H03000272

SCREW BTR (10X100) OEM PIAGGIO COMMON A LA RANGE-00H03000272

More information

Quantity required : 1

SCREW BTR (8X90) OEM PIAGGIO COMMON A LA RANGE-00H02500272

14
P2R reference P2R reference 64704
Maker reference Maker reference 00H02500272

SCREW BTR (8X90) OEM PIAGGIO COMMON A LA RANGE-00H02500272

More information

Quantity required : 1
