Vehicle Exploded View - APRILIA SX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

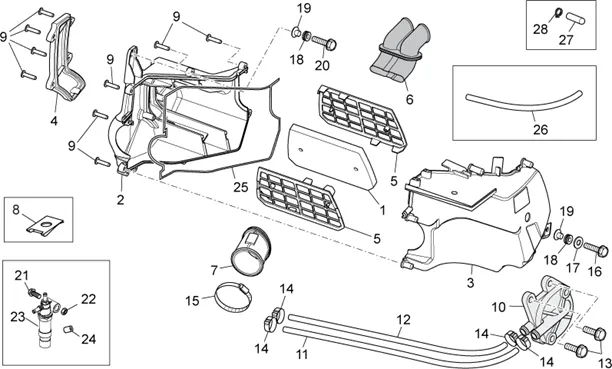

Chassis : 28.19 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/702/SX_125_2008-2010_28.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/7/6/img/69776.jpg)
1 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RX, SX -858415 More informationQuantity required : 1 |
||||||
2 |
858411-BODY FILTER More informationQuantity required : 1 |
||||||
|
3 |
858412-BODY FILTER More informationQuantity required : 1 |
||||||
|
4 |
858414-COVER FILTER More informationQuantity required : 1 |
||||||
|
5 |
858413-BRACKET FILTER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.jpg)
6 |
SLEEVE D'ASPIRATION OEM APRILIA 125 RS, RX, SX 2010 <-AP8120748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/1/6/img/46716.jpg)
6 |
SLEEVE D'ASPIRATION ON COVER DE AIR FILTER OEM PIAGGIO APRILIA 125 RX, SX, MX, RS, CLASSIC, TUONO-AP8120997 More informationQuantity required : 1 |
||||||
|
7 |
AP8120654 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
9 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 11 |
||||||
|
10 |
AP8104745 - VALVOLA ARIA SECONDARIA More informationQuantity required : 1 |
||||||
|
11 |
860009-HOSE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
12 |
860010 - TUYAU AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
13 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
14 |
CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
15 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
16 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
17 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
18 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
19 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
20 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 1 |
||||||
|
21 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/7/1/img/70471.jpg)
23 |
VALVE SOLENOIDE OEM PIAGGIO COMMON A LA RANGE-873270 More informationQuantity required : 1 |
||||||
|
24 |
854569-FILTER SOLENOIDE More informationQuantity required : 1 |
||||||
|
25 |
890679-GASKET More informationQuantity required : 1 |
||||||
|
26 |
AP8120955-TUBO GREY 3X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
27 |
CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
28 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 1 |
