Vehicle Exploded View - APRILIA SX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

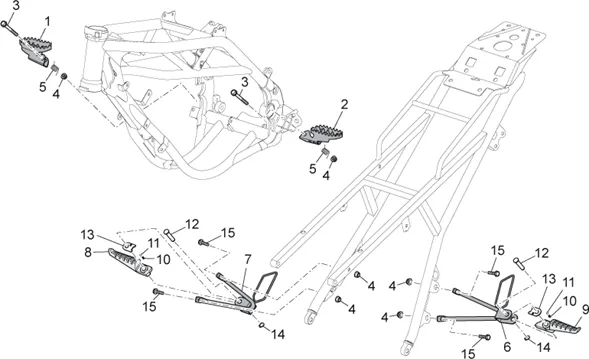

Chassis : 28.04 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/702/SX_125_2008-2010_28.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/1/3/5/img/50135.jpg)
1 |
FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50-125 RX, SX-AP8146819 More informationQuantity required : 1 |
||||||
2 |
FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RX, SX-AP8146821 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
3 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 6 |
||||||
|
5 |
AP8101317-RES. RAP. PLAN. PIL. More informationQuantity required : 2 |
||||||
|
6 |
860267-BRACKET R-P. PASS. DR. More informationQuantity required : 1 |
||||||
|
7 |
860389 - SUPPORT R-P. PASS.DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/6/img/71796.jpg)
8 |
PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO-AP8146864 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/7/img/71797.jpg)
9 |
PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO-AP8146865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
10 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
11 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/0/img/71710.jpg)
12 |
PIVOT OF REST FOOT (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8134829 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/9/1/img/48691.jpg)
13 |
AP8132720 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
14 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
15 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 4 |
