Vehicle Exploded View - APRILIA SX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

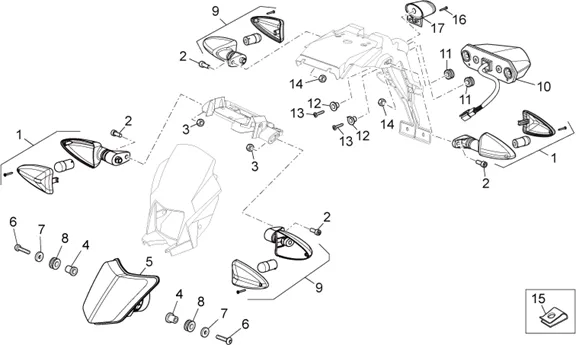

Chassis : 28.13 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/702/SX_125_2008-2010_28.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/5/img/71625.jpg)
1 |
INDICATOR AVD/ARG OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >, 450-550 RXV, SXV 2008 > 2011-AP8127783 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
4 |
AP8121665-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/1/2/img/96512.jpg)
5 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA 50 RX, SX 2014 >, 125 RX, SX 2008 > 2010, 450-550 RXV, SXV 2008 > 2011-855038 More informationQuantity required : 1 |
||||||
|
5 |
859702-HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
6 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
7 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
8 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/6/img/71626.jpg)
9 |
INDICATOR AVG/ARD OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >, 450-550 RXV, SXV 2008 > 2011-AP8127784 More informationQuantity required : 2 |
||||||
|
10 |
AP8127652 - FANALE POST. More informationQuantity required : 1 |
||||||
|
11 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
12 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
13 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
15 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
16 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
17 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
