Vehicle Exploded View - GILERA SURFER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

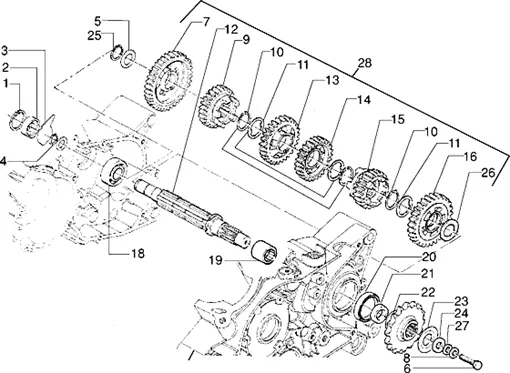

Moteur : T9 ARBRE SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/8/img/73678.jpg)
1 |
CLIPS/CIRCLIPS CORRECTEUR DE COUPLE OEM PIAGGIO FLY 125-150, LIBERTY 125-150, MP3 125-250-300-400-500/125 VESPA LX, GTS, VESPA-S-006628 More informationQuantity required : 2 |
||||||
2 |
RONDELLE D'ARRET |
||||||
|
3 |
PLAQUETTE |
||||||
|
4 |
CIRCLIPS |
||||||
|
5 |
RONDELLE D'ARRET |
||||||
|
6 |
VIS |
||||||
|
7 |
432589 - ENGRENAGE PREMIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
|
9 |
ENGRENAGE 5EME |
||||||
|
10 |
CIRCLIPS |
||||||
|
11 |
942093 - RONDELLE EPAULEMENT More informationQuantity required : 3 |
||||||
|
12 |
ARBRE SECONDAIRE NU |
||||||
|
13 |
ENGRENAGE 3EME |
||||||
|
14 |
432592 - ENGRENAGE EX-439592 More informationQuantity required : 1 |
||||||
|
15 |
ENGRENAGE 6EME |
||||||
|
16 |
ENGRENAGE 2EME |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/3/img/139373.jpg)
18 |
BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-0028005 More informationQuantity required : 1 |
||||||
|
19 |
432621 - CAGE A ROULEAU More informationQuantity required : 1 |
||||||
|
20 |
434065 - PARE HUILE More informationQuantity required : 1 |
||||||
|
21 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/6/2/0/img/78620.jpg)
22 |
SPROCKET DE TRANSMISSION 12 TEETH OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK, ZULU 1998 > 2005-434208 More informationQuantity required : 1 |
||||||
|
23 |
433843 - RESSORT DIAPHRAGME More informationQuantity required : 1 |
||||||
|
24 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
25 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006632 More informationQuantity required : 1 |
||||||
|
26 |
RONDELLE |
||||||
|
27 |
RONDELLE |
||||||
|
28 |
433864 - ARBRE SECONDAIRE More informationQuantity required : 1 |
