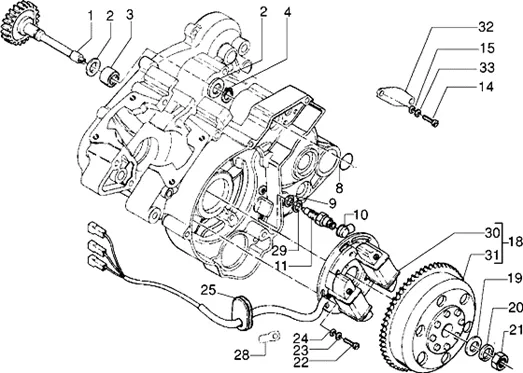

Vehicle Exploded View - GILERA SURFER 50 1998-2005 GILERA

Moteur : T11 VOLANT MAGNETIQUE
Volant magnetique
Search
9422075 - ENGRENAGE

1
P2R reference P2R reference 93619
Maker reference Maker reference 9422075

9422075 - ENGRENAGE

More information

Quantity required : 1

EPAULEMENT

2
P2R reference P2R reference
Maker reference Maker reference 942210

EPAULEMENT

CAGE A AIGUILLES ARTICULATION BARRE DE STEERING OEM PIAGGIO 125-250-300-400-500 MP3-167016

3
P2R reference P2R reference 112144
Maker reference Maker reference 167016

CAGE A AIGUILLES ARTICULATION BARRE DE STEERING OEM PIAGGIO 125-250-300-400-500 MP3-167016

More information

Quantity required : 1

CLIPS/CIRCLIPS (10. 9) OEM PIAGGIO COMMUNUN A LA RANGE-006412

4
P2R reference P2R reference 63812
Maker reference Maker reference 0064125

CLIPS/CIRCLIPS (10. 9) OEM PIAGGIO COMMUNUN A LA RANGE-006412

More information

Quantity required : 1

GASKET OF OIL PUMP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-311163

8
P2R reference P2R reference 66330
Maker reference Maker reference 311163

GASKET OF OIL PUMP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-311163

More information

Quantity required : 1

JOINT

9
P2R reference P2R reference
Maker reference Maker reference 324188

JOINT

CACHE

10
P2R reference P2R reference
Maker reference Maker reference 327261

CACHE

324148 - CONTACT PM

11
P2R reference P2R reference 78341
Maker reference Maker reference 324148

324148-CONTACT PM

More information

Quantity required : 1

VIS

14
P2R reference P2R reference
Maker reference Maker reference 319447

VIS

003055 - RONDELLE

15
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 1

VOLANT

18
P2R reference P2R reference
Maker reference Maker reference 951629

VOLANT

RONDELLE

19
P2R reference P2R reference
Maker reference Maker reference 319448

RONDELLE

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

20
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

ECROU

21
P2R reference P2R reference
Maker reference Maker reference 942376

ECROU

22
P2R reference P2R reference
Maker reference Maker reference 0302305

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

23
P2R reference P2R reference 63836
Maker reference Maker reference 0069645

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

More information

Quantity required : 3

RONDELLE

24
P2R reference P2R reference
Maker reference Maker reference 319384

RONDELLE

PASSE CABLE

25
P2R reference P2R reference
Maker reference Maker reference 294300

PASSE CABLE

PROTECTION

28
P2R reference P2R reference
Maker reference Maker reference 410830

PROTECTION

JOINT

29
P2R reference P2R reference
Maker reference Maker reference 319313

JOINT

STATOR

30
P2R reference P2R reference
Maker reference Maker reference 951746

STATOR

ROTOR

31
P2R reference P2R reference
Maker reference Maker reference 951747

ROTOR

PLAQUETTE

32
P2R reference P2R reference
Maker reference Maker reference 942226

PLAQUETTE

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

33
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

More information

Quantity required : 2
