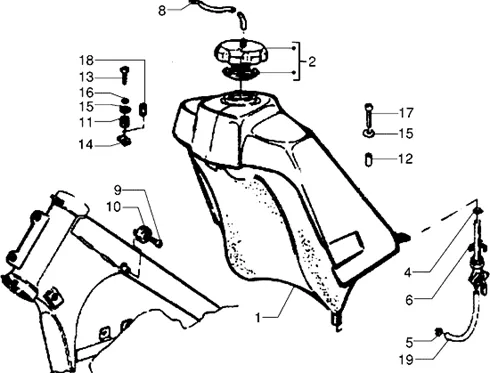

Châssis : T20 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T20.PNG)
1 |
RESERVOIR ESSENCE |
||||||
|
2 |
BOUCHON RESERVOIR ES |
||||||
|
4 |
811354 - ROBINET ESSENCE More informationQuantity required : 1 |
||||||
|
5 |
COLLIER |
||||||
|
8 |
TUYAU |
||||||
|
9 |
VIS |
||||||
|
10 |
TAMPON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/5/3/img/74753.jpg)
11 |
RUBBER MOUNT BRACKET BOBINE OEM PIAGGIO 125 VESPA PX-141590 More informationQuantity required : 1 |
||||||
|
12 |
ENTRETOISE |
||||||
|
13 |
809903 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
15 |
WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
16 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
17 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
|
18 |
|
