Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 NTX ABS 1200 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

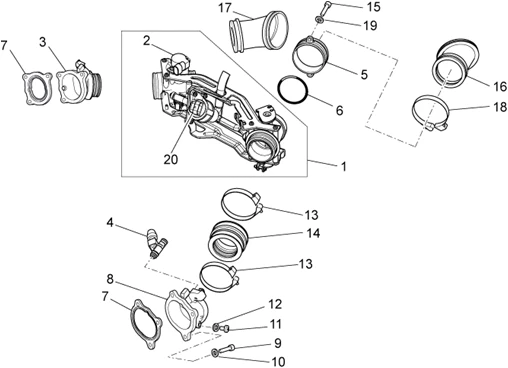

Moteur : 34.65 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/518/Stelvio_1200_NTX_ABS_1200_2009-2010_34.65.PNG)
1 |
880270 - CORPO FARFALLATO INIEZ More informationQuantity required : 1 |
||||||
|
2 |
981010-POTENZIOMETRO POSIZIONE FARFALLA More informationQuantity required : 1 |
||||||
|
3 |
873490-PIPA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/7/img/72987.JPG)
4 |
INJECTEUR COMPLETE OEM APRILIA CAPONORD, DORSODURO/MOTO GUZZI GRISO, NORGE, STELVIO-CM074706 More informationQuantity required : 2 |
||||||
|
5 |
976498-FLANGIA CORPO FARF.-CONDOTTO ARI More informationQuantity required : 2 |
||||||
|
6 |
976566-ANELLO OR 53, 7X1, 78 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/3/9/img/98339.jpg)
7 |
GASKET MANIFOLD INTAKE OEM PIAGGIO MOTO-GUZZI 1200 SPORT, GRISO, NORGE, STELVIO-873879 More informationQuantity required : 2 |
||||||
|
8 |
873491-PIPA DX More informationQuantity required : 1 |
||||||
|
9 |
GU98882325-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
10 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 6 |
||||||
|
11 |
GU98350310-SCREW M6X20 More informationQuantity required : 2 |
||||||
|
12 |
GU95100116-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/5/img/132615.jpg)
13 |
CLAMP 61/65. 5 OEM PIAGGIO COMMON A LA RANGE-GU93305061 More informationQuantity required : 4 |
||||||
|
14 |
873861-MANICOTTO PIPA/CORPO FARF More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
15 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
|
16 |
877057-CONDOTTO ARIA DX CORPO 50 MM More informationQuantity required : 1 |
||||||
|
17 |
877056-CONDOTTO ARIA SX CORPO 50 MM More informationQuantity required : 1 |
||||||
|
18 |
GU93306050-CLAMP More informationQuantity required : 2 |
||||||
|
19 |
GU95008305-WASHER 5, 3X10X1 More informationQuantity required : 2 |
||||||
|
20 |
896540 - KIT MOTEUR REGLAGE RALENTI More informationQuantity required : 1 |
