Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 NTX ABS 1200 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

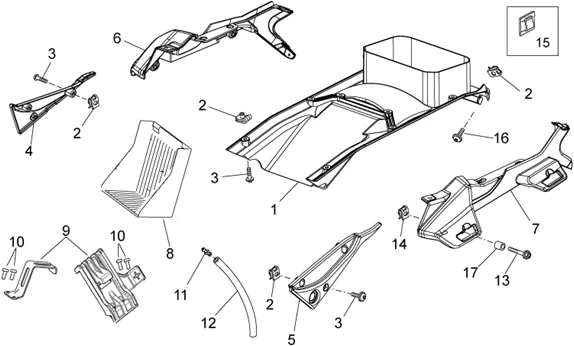

Chassis : 33.20 CARROSSERIE ARRIÉRE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/518/Stelvio_1200_NTX_ABS_1200_2009-2010_33.20.PNG)
1 |
978446-PARASPRUZZI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
2 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 10 |
||||||
|
4 |
883024-SIDE PANEL DX More informationQuantity required : 1 |
||||||
|
5 |
883023-SIDE PANEL SX More informationQuantity required : 1 |
||||||
|
6 |
886206-BRACKET VALIGIA DX More informationQuantity required : 1 |
||||||
|
6 |
97863800Y10-BRACKET VALIGIA DX SILVER More informationQuantity required : 1 |
||||||
|
7 |
886207-BRACKET VALIGIA SX More informationQuantity required : 1 |
||||||
|
7 |
97863900Y10-BRACKET VALIGIA SX SILVER More informationQuantity required : 1 |
||||||
|
8 |
883617-PORTA BATTERIA More informationQuantity required : 1 |
||||||
|
9 |
883618 - PIASTRA FISSAGGIO BATTERIA More informationQuantity required : 1 |
||||||
|
9 |
886205 - PIASTRA FISSAGGIO BATTERIA More informationQuantity required : 1 |
||||||
|
10 |
AP8150377-SCREW TCB M 6 X 16 INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 2 |
||||||
|
11 |
GU06704700-FITTING More informationQuantity required : 1 |
||||||
|
12 |
896570-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
13 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
|
15 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 1 |
||||||
|
16 |
GU98710215 - VIS M5X15 More informationQuantity required : 2 |
||||||
|
17 |
883177-BOCCOLA 6. 2X10X10. 7 COL 13X1. 5 More informationQuantity required : 4 |
