Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 NTX ABS 1200 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

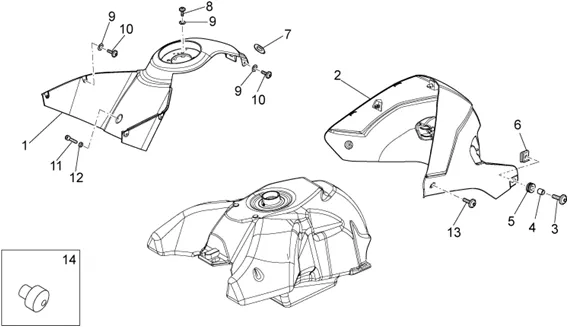

Chassis : 33.17 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/518/Stelvio_1200_NTX_ABS_1200_2009-2010_33.17.PNG)
1 |
978419-COPERTURA CAP TANK GREZZO More informationQuantity required : 1 |
|||||||||
|
1 |
97841900BM - COPERTURA TAPPO SERBATOIO BIANCO More informationQuantity required : 1 |
|||||||||
|
1 |
97841900Y01-COPERTURA CAP TANK ROSSO More informationQuantity required : 1 |
|||||||||
|
1 |
97841900Y02-COPERTURA CAP TANK NERO More informationQuantity required : 1 |
|||||||||
|
1 |
97841900YE1-COPERTURA CAP TANK SILVER More informationQuantity required : 1 |
|||||||||
|
1 |
97841900YG2-COPERTURA CAP TANK BRONZO More informationQuantity required : 1 |
|||||||||
|
1 |
97841900YG3-COPERTURA CAP TANK GIALLO More informationQuantity required : 1 |
|||||||||
|
2 |
97863400Y11-COPERTURA TANK GREY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
3 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
|
4 |
GU91180600-SPACER More informationQuantity required : 2 |
|||||||||
|
5 |
978152-SILENBLOC More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
7 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
8 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
9 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
10 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-GU98370412 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
11 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
12 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
14 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081 More informationQuantity required : 1 |
|||||||||
