Vehicle Exploded View - GILERA STALKER 50 2008-2011 GILERA

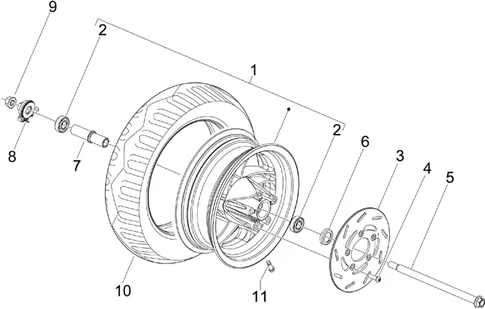

Suspensions - roues : 04.11 ROUE AVANT
Roue avant
Search
56384R0090 - ROUE AV.

1
P2R reference P2R reference 79968
Maker reference Maker reference 56384R0090

56384R0090 - ROUE AV.

More information

Quantity required : 1

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910

2
P2R reference P2R reference 68102
Maker reference Maker reference 649910

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910

More information

Quantity required : 2

DISC FRONT (3 TROUS) OEM PIAGGIO GILERA 50 STALKER/PIAGGIO 50 TYPHOON 2006 > 2010-56408R

3
P2R reference P2R reference 80012
Maker reference Maker reference 56408R

DISC FRONT (3 TROUS) OEM PIAGGIO GILERA 50 STALKER/PIAGGIO 50 TYPHOON 2006 > 2010-56408R

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606

4
P2R reference P2R reference 67066
Maker reference Maker reference 564606

SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606

More information

Quantity required : 3

FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901-

5
P2R reference P2R reference 95669
Maker reference Maker reference CM076901

FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901-

More information

Quantity required : 1

WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756

6
P2R reference P2R reference 67057
Maker reference Maker reference 564475

WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756

More information

Quantity required : 1

649914 - ENTRETOISE

7
P2R reference P2R reference 87001
Maker reference Maker reference 649914

649914-SPACER

More information

Quantity required : 1

SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2010/GILERA 50 STALKER 2005> -298798

8
P2R reference P2R reference 78002
Maker reference Maker reference 298798

SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2010/GILERA 50 STALKER 2005> -298798

More information

Quantity required : 1

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

9
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 1

564635 - PNEU SAVA 120/90-10

10
P2R reference P2R reference 67071
Maker reference Maker reference 564635

SCOOTER TYRE 10 " 120/90-10 MITAS MC 17 56J MONTE OEM PIAGGIO COMMON A LA RANGE-564635

More information

Quantity required : 1

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

11
P2R reference P2R reference 66094
Maker reference Maker reference 270991

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

More information

Quantity required : 1
