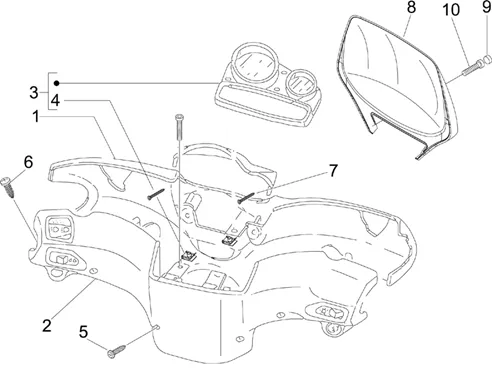

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/152/Stalker_2008-2011_03.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/4/4/img/85444.jpg)
1 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -624910- More informationQuantity required : 1 |
||||||
1 |
62491000AI - COUVRE GUIDON SIMPLE DISQUE More informationQuantity required : 1 |
||||||
|
1 |
62491000NG - COUVRE GUIDON SIMPLE DISQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/5/8/img/85458.jpg)
1 |
HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA STALKER (SINGLE DISC BRAKE) BLACK 80/B -62491000NI- More informationQuantity required : 1 |
||||||
|
1 |
62491000R7 - COUVRE GUIDON SIMPLE DISQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/3/8/img/79738.jpg)
2 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER -560846000C- More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
5 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
6 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
7 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 4 |
||||||
|
8 |
FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -621759- More informationQuantity required : 1 |
||||||
|
8 |
PLATE DOOR NUMERO/KIT BULLE OEM PIAGGIO GILERA 50 STALKER BLACK-62175900NG More informationQuantity required : 1 |
||||||
|
8 |
PLATE DOOR NUMERO/KIT BULLE OEM PIAGGIO GILERA 50 STALKER BLACK 80/B-62175900NI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/7/0/img/76670.jpg)
9 |
CAPSULE MOUNTING SAUTE VENT OEM PIAGGIO COMMON A LA RANGE-230872 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
10 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
