Vehicle Exploded View - GILERA STALKER 50 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

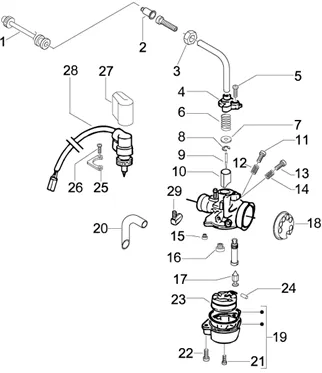

Moteur : 01.40 COMPOSANTS DE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/152/Stalker_2008-2011_01.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/0/9/img/82509.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DEDOUBLEUR-CARBU) OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-599381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/7/img/70587.jpg)
2 |
CAPUCHON RUBBER DE GAINE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-875551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/9/img/65709.jpg)
3 |
CONTRE NUT (M6 FILETAGE 0. 75) REGLAGE CABLE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-120074 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/5/img/66415.jpg)
4 |
COVER BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE-431654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
5 |
SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
6 |
SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
7 |
BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
8 |
CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/0/img/73100.jpg)
9 |
CARBURETTOR NEEDLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-CM107510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/1/img/73181.jpg)
10 |
VOLET/BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM141710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/2/img/73102.jpg)
11 |
SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM107701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
12 |
SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/5/img/68725.jpg)
13 |
SCREW REGLAGE THROTTLE BODY DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-828074 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
14 |
SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/6/7/img/73067.jpg)
15 |
GICLEUR DE RALENTI OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM102103 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/5/img/73045.jpg)
16 |
HAND OPEN FACE (53) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-CM101704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
17 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM128501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/4/img/68714.jpg)
18 |
CALIBREUR AIR OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827892 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/4/img/66664.jpg)
19 |
CUVE CARBURETTOR SCOOTER OEM PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA-484704 More informationQuantity required : 1 |
||||||
20 |
CM112001-TUBE VIDANGE CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/3/img/66423.jpg)
21 |
SCREW OF CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-432456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
22 |
SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/9/img/146199.jpg)
23 |
FLOTTEUR CARBU DELLORTO PHBN/PHVA OEM PIAGGIO COMMON A LA RANGE-288882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
24 |
SPINDLE FLOTTEUR PHVA OEM PIAGGIO COMMON A LA RANGE-288881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
25 |
PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
26 |
SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/7/img/66687.jpg)
27 |
COIFFE DE CARBURETTOR DELLORTO OEM PIAGGIO COMMON A LA RANGE-485671 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/8/7/img/73087.jpg)
28 |
STARTER OEM PIAGGIO 50 ZIP 2000 >, TYPHOON, NRG, LIBERTY, VESPA LX 2005 >, PRIMAVERA 2013 > VESPA-S 2007 >, SPRINT 2014 >/GILERA 50 STALKER, RUNNER 2005 >/APRILIA 50 SR MOTARD, SRH2O-CM105905 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/5/img/66485.jpg)
29 |
FITTING ARRIVE D'HUILE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-436206 More informationQuantity required : 1 |
