Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E4 2018 (EMEA - APAC)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

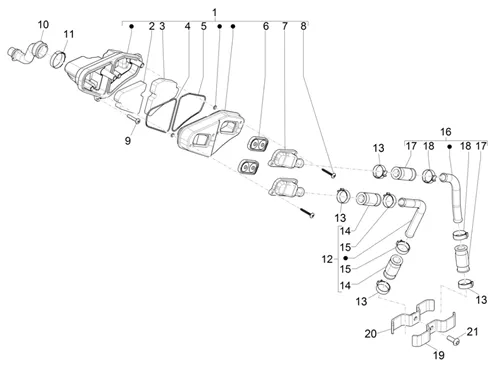

Moteur : 01.46 BOITIÎ AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/820/SR_Motard_50_2T_E4_2018_(EMEA_-_APAC)_01.46.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/5/4/img/152754.jpg)
1 |
HOUSING AIR FILTER SECONDAIRE OEM PIAGGIO 50 2T TYPHOON, NRG/SR APRILIA 2018 >-1A0112805 More informationQuantity required : 1 |
||||||
2 |
1A008723-AIR FILTER SECONDAIRE More informationQuantity required : 1 |
||||||
|
3 |
1A008724-FILTER AIR More informationQuantity required : 1 |
||||||
|
4 |
1A008725-GASKET COVER More informationQuantity required : 1 |
||||||
|
5 |
1A008726-GASKET COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/1/img/68681.jpg)
6 |
MEMBRANE/VALVE DE HOUSING RECYCLAGE DE THROTTLE OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T-82758R More informationQuantity required : 2 |
||||||
|
7 |
827209-COVER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
8 |
SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
9 |
SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597 More informationQuantity required : 2 |
||||||
|
10 |
1A008774-HOSE D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
11 |
CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908 More informationQuantity required : 1 |
||||||
|
12 |
1A0105085-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/2/img/68672.jpg)
13 |
CLAMP HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827444 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/1/img/68671.jpg)
14 |
SLEEVE DE HOSE RECYCLAGE DES THROTTLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-827443 More informationQuantity required : 2 |
||||||
|
15 |
CLAMP HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827444 More informationQuantity required : 2 |
||||||
|
16 |
1A0105105-HOSE More informationQuantity required : 1 |
||||||
|
17 |
SLEEVE DE HOSE RECYCLAGE DES THROTTLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-827443 More informationQuantity required : 1 |
||||||
|
18 |
CLAMP HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827444 More informationQuantity required : 1 |
||||||
|
19 |
1A013265-BRACKET More informationQuantity required : 1 |
||||||
|
20 |
1A013266-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/7/img/72707.jpg)
21 |
SCREW BTR HEAD BOMBEE (5X14) OEM PIAGGIO COMMON A LA RANGE-B016455 More informationQuantity required : 1 |
