Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E4 2018 (EMEA - APAC)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

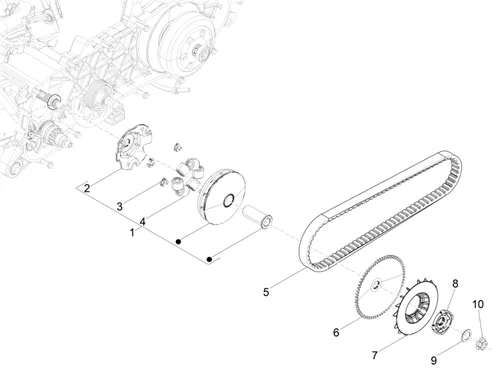

Moteur : 01.13 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/820/SR_Motard_50_2T_E4_2018_(EMEA_-_APAC)_01.13.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/2/img/152742.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO TYPHOON E4 2018 > APRILIA SR50 E4 2018 >-CM270118 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/4/img/66594.jpg)
2 |
LOGEMENT/FLASQUE GALETS OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-480227 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
3 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER, RUNNER 1997 >/APRILIA 50 SR 2011 >-289931 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/8/6/img/127786.jpg)
4 |
GALET/ROLLER OEM PIAGGIO 50 LIBERTY 3V 2016 >, ZIP 2018 > 4T, VESPA SPRINT, VESPA PRIMAVERA 4T, TYPHOON 2018/APRILIA 50 SR MOTARD 2018 > (VENDU A L UNITE 6G)-CM270202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/7/img/149097.jpg)
5 |
DRIVE BELT SCOOTER OEM PIAGGIO 50 TYPHOON 2010 >, FLY 2T 1998 > 2011, LIBERTY 2T ET 4T 1998 >/APRILIA 50 SPORT-CITY 2T ET 4T 2008 >, SR-MOTARD 2010 >, SCARABEO 2T ET 4T/GILERA 50 DNA-1A013579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/1/img/66581.jpg)
6 |
JOUE FIXE VARIATOR SCOOTER OEM PIAGGIO 50 TYPHOON 2005 >, ZIP 2000 >, FLY 2T 2005 >, LIBERTY 2005 >, NRG 2005 >, VESPA LX 2005 >, VESPA-S 2007 >/50 STALKER 2005 >/APRILIA 50 SR 2012 > 50 SXR 2021 >-479561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/9/img/69359.jpg)
7 |
DISC VENTILATEUR DE PULLEY MOTRICE OEM PIAGGIO 50 TYPHOON 2004 >, NRG 2005 >, ZIP 2000 >, VESPA LX 2005 >, FLY 2005 >/APRILIA 50 SR 2010 > 50 SXR 2021 >/GILERA 50 STALKER 2003 >, RUNNER 2004-845611 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/5/img/70645.jpg)
8 |
OEM SCOOTER KICK OEM PIAGGIO COMMON RANGE SCOOTER 50 2T ET 4T-8770756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/9/img/66049.jpg)
9 |
WASHER DE PULLEY MOTRICE (23X15X0, 5) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T ET 4T-265300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
10 |
NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519 More informationQuantity required : 2 |
