Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E4 2018 (EMEA - APAC)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

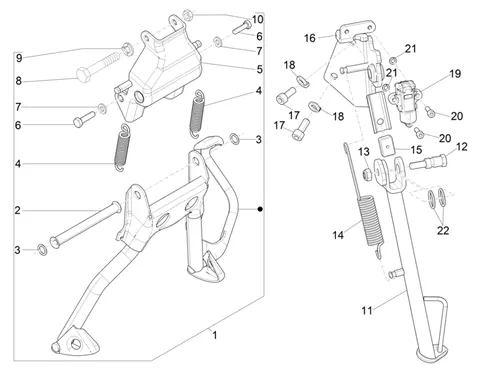

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/820/SR_Motard_50_2T_E4_2018_(EMEA_-_APAC)_02.25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/1/3/8/img/155138.jpg)
1 |
CENTRE STAND OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C004396 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/7/img/67287.jpg)
2 |
SHAFT OF CENTRE STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-583603 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/2/img/66102.jpg)
3 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/3/img/66143.jpg)
4 |
SPRING DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-278940 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/1/img/66121.jpg)
5 |
BRACKET DE CENTRE STAND OEM PIAGGIO 50 TYPHOON, STALKER-272929 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
6 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-031122 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
7 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/7/img/65617.jpg)
8 |
SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
10 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
|||||||||
11 |
1C003129 - BEQUILLE More informationQuantity required : 1 |
|||||||||
|
12 |
1C003382 - PIVOT More informationQuantity required : 1 |
|||||||||
|
13 |
1C002807 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/6/7/img/152767.jpg)
14 |
SPRING STAND OEM PIAGGIO 50 TYPHOON 2T 2018 >-1C001871 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
15 |
BUFFER DE STAND OEM PIAGGIO COMMON LA RANGE SCOOTER ET MAXI SCOOTER-582885 More informationQuantity required : 1 |
|||||||||
|
16 |
1C003437 - PATTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
17 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-2928896 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
18 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/2/img/86402.jpg)
19 |
642559 - BOUTON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
20 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-599009 More informationQuantity required : 2 |
|||||||||
|
21 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
|||||||||
|
22 |
1C003392 - CIRCLIPS More informationQuantity required : 1 |
|||||||||
