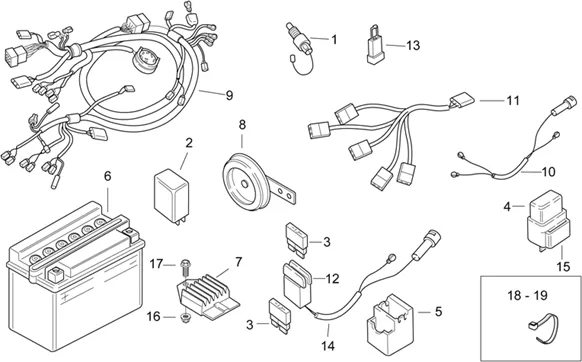

Chassis : 28.30 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
1 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
2 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
3 |
CM225607-FUSIBLE More informationQuantity required : 2 |
||||||
|
4 |
AP8224057-RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
5 |
AP8220342 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
6 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
|
7 |
AP8212799 - REGULATEUR DE TENSION; More informationQuantity required : 1 |
||||||
|
8 |
AVERTISSEUR OEM APRILIA SR 50 1993 >-58237R More informationQuantity required : 1 |
||||||
|
9 |
FAISCEAU PRINCIPAL |
||||||
|
10 |
AP8212670 - CABLAGE DEMARREUR More informationQuantity required : 1 |
||||||
|
11 |
AP8224145 - CABLAGE COMMANDES GUIDON; More informationQuantity required : 1 |
||||||
|
11 |
AP8224147 - CABLAGE COMMANDES GUIDON; More informationQuantity required : 1 |
||||||
|
12 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
13 |
DIODE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1998 > 2005, 650 PEGASO, 1000 CAPONORD, FUTURA-AP8212382 More informationQuantity required : 1 |
||||||
|
14 |
AP8212738-WIRING FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
15 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
17 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
18 |
HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
19 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 2 |
