Vehicle Exploded View - APRILIA SR 50 Air 1997-2001 APRILIA

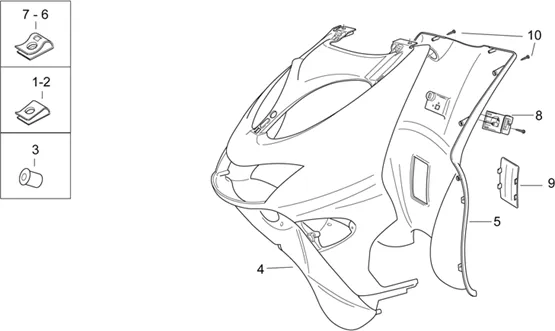

Chassis : 28.08 CARROSSERIE AV. III
Carrosserie av. III
Search
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

1
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

2
P2R reference P2R reference 72157
Maker reference Maker reference AP8202449

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

More information

Quantity required : 2

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

3
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 4

Tabl AV rouge+déc.

4
P2R reference P2R reference
Maker reference Maker reference AP8238455

Tabl AV rouge+déc.

AP8239316 - TABL AV BLEU+DECALC.;

4
P2R reference P2R reference 58335
Maker reference Maker reference AP8239316

AP8239316 - TABL AV BLEU+DECALC.;

More information

Quantity required : 1

Tabl AV bleu+décalc.;

4
P2R reference P2R reference
Maker reference Maker reference AP8239388

Tabl AV bleu+décalc.;

AP8239831 - SCUDO ANTER.V.AZZURRO SOLID

4
P2R reference P2R reference 58403
Maker reference Maker reference AP8239831

AP8239831 - SCUDO ANTER.V.AZZURRO SOLID

More information

Quantity required : 1

Tablier AV jau+déc.;

4
P2R reference P2R reference
Maker reference Maker reference AP8239835

Tablier AV jau+déc.;

AP8268409 - SCUDO ANT.V.BLU CYBER N/DEC.

4
P2R reference P2R reference 60050
Maker reference Maker reference AP8268409

AP8268409 - SCUDO ANT.V.BLU CYBER N/DEC.

More information

Quantity required : 1

AP8248851 - TABLIER AV BLANC L.+DECO;

4
P2R reference P2R reference 58663
Maker reference Maker reference AP8248851

AP8248851 - TABLIER AV BLANC L.+DECO;

More information

Quantity required : 1

AP8249289 - TABL AV ROUGE+DEC.;

4
P2R reference P2R reference 58763
Maker reference Maker reference AP8249289

AP8249289 - TABL AV ROUGE+DEC.;

More information

Quantity required : 1

AP8249536 - TAB. AV NOIR EBENE;

4
P2R reference P2R reference 58803
Maker reference Maker reference AP8249536

AP8249536 - TAB. AV NOIR EBENE;

More information

Quantity required : 1

Tab.AV hot rouge+déc.;

4
P2R reference P2R reference
Maker reference Maker reference AP8249548

Tab.AV hot rouge+déc.;

AP8249712 - TABL. AV EL.BLEU+DEC.;

4
P2R reference P2R reference 58837
Maker reference Maker reference AP8249712

AP8249712 - TABL. AV EL.BLEU+DEC.;

More information

Quantity required : 1

AP8249927 - TABL. AV EL.BLEU

4
P2R reference P2R reference 58925
Maker reference Maker reference AP8249927

AP8249927 - TABL. AV EL.BLEU

More information

Quantity required : 1

AP8258039 - TAB.AV HOT ROUGE+DEC.;

4
P2R reference P2R reference 59006
Maker reference Maker reference AP8258039

AP8258039 - TAB.AV HOT ROUGE+DEC.;

More information

Quantity required : 1

AP8258235 - TABLIER AV JAU+DEC.;

4
P2R reference P2R reference 59078
Maker reference Maker reference AP8258235

AP8258235 - TABLIER AV JAU+DEC.;

More information

Quantity required : 1

AP8238362 - TABLIER INTERNE GRIS;

5
P2R reference P2R reference 58220
Maker reference Maker reference AP8238362

AP8238362 - TABLIER INTERNE GRIS;

More information

Quantity required : 1

AP8248656 - TAB.INT.NOIR MET.;

5
P2R reference P2R reference 58617
Maker reference Maker reference AP8248656

AP8248656-TAB. INT. BLACK MET *

More information

Quantity required : 1

Tablier int. bleu;

5
P2R reference P2R reference
Maker reference Maker reference AP8248803

Tablier int. bleu;

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

7
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

AP8258034 - CROCHET DES.SELLE CPL;

8
P2R reference P2R reference 72345
Maker reference Maker reference AP8258034

AP8258034 - CROCHET DES.SELLE CPL;

More information

Quantity required : 1

COVER DONNEE OEM PIAGGIO 50 SR APRILIA 1997 > 2001 GREY-AP8238675

9
P2R reference P2R reference 58248
Maker reference Maker reference AP8238675

COVER DONNEE OEM PIAGGIO 50 SR APRILIA 1997 > 2001 GREY-AP8238675

More information

Quantity required : 1

AP8248657 - COUV. DONNEES HOM., NOIR;

9
P2R reference P2R reference 58618
Maker reference Maker reference AP8248657

AP8248657 - COUV. DONNEES HOM., NOIR;

More information

Quantity required : 1

Couv. données hom., bleu;

9
P2R reference P2R reference
Maker reference Maker reference AP8248804

Couv. données hom., bleu;

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

10
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 4
