Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

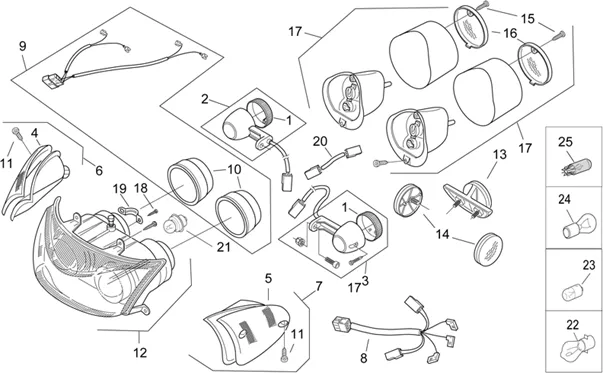

Chassis : 28.29 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
1 |
CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680 More informationQuantity required : 2 |
||||||
2 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
|
3 |
AP8212699-CLIGNOT. AV. DR./ARR. GA. More informationQuantity required : 1 |
||||||
|
4 |
AP8124543 - GLACE CLIGN. AV D; More informationQuantity required : 1 |
||||||
|
5 |
AP8124544-GLACE CLIGN. AV G More informationQuantity required : 1 |
||||||
|
6 |
FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 50 SR 1997 > 2000, 125 LEONARDO 1996 > 1998-AP8124540 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/2/2/img/47522.jpg)
7 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR 1997>2000, 125 LEONARDO 1996>1998 -AP8124541- More informationQuantity required : 1 |
||||||
|
8 |
AP8212775 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
8 |
AP8212937 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
9 |
AP8224148 - CABLAGE FEU AV; More informationQuantity required : 1 |
||||||
|
9 |
AP8224149 - FAISCEAU PHARE AVANT More informationQuantity required : 1 |
||||||
|
10 |
AP8212841-COIFFE HEADLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
11 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 4 |
||||||
|
12 |
AP82127716 - PHARE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/4/7/img/56347.jpg)
12 |
HEAD LIGHT - "PIAGGIO GENUINE PART" APRILIA 50 SR H2O1997>2012 -AP8212903- More informationQuantity required : 1 |
||||||
|
12 |
AP82127716 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
13 |
AP8212813-CATADIOPTRE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/9/5/img/57295.jpg)
13 |
AP8224196 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/4/img/72324.jpg)
14 |
CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163 More informationQuantity required : 2 |
||||||
|
15 |
AP8212934 - VIS TARAUD BLANCHE More informationQuantity required : 2 |
||||||
|
16 |
CABOCHON OF REAR LIGHT OEM PIAGGIO APRILIA 50 SR H2O-AP8224256 More informationQuantity required : 2 |
||||||
|
17 |
AP8224167 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
|
17 |
AP8224245 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
18 |
AP8224063-SCREW TARAUD More informationQuantity required : 2 |
||||||
|
19 |
AP8224062 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
20 |
WIRING DE INDICATOR FRONT OEM PIAGGIO APRILIA 50 SCARABEO, SR H2O-AP8212698 More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
22 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
24 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
25 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
