Vehicle Exploded View - APRILIA SPORT CITY CUBE 300 IE 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

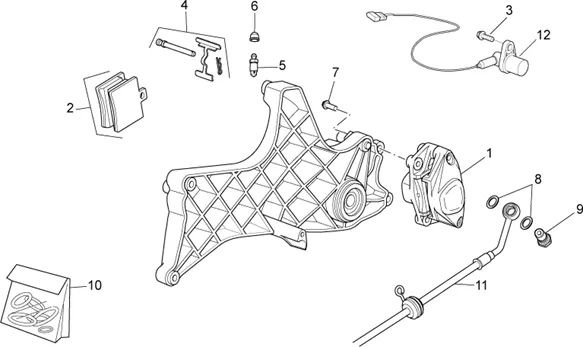

Chassis : 28.32 PINCE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/730/Sport_City_Cube_300_IE_2008-2012_28.32.PNG)
1 |
AP8133855 - PINZA FRENO POST.D.32 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/3/img/71693.jpg)
2 |
BRAKE PADS REAR OEM PIAGGIO APRILIA 125-400-500 SCARABEO LIGHT, 125-250 SPORT-CITY 2006 > 2008, 300 SPORT CITY LIGHT 2008 > 2012, 125 RS 2006 > 2010 (PAIRE)-AP8133946 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
4 |
KIT SPRING BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO-AP8213578 More informationQuantity required : 1 |
||||||
|
5 |
AP8213574-SPURGO ARIA More informationQuantity required : 1 |
||||||
|
6 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
7 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
9 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
|
10 |
AP8213579-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
|
11 |
860671-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/1/3/img/70813.jpg)
12 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA/APRILIA 125-250-300 SPORT-CITY, 250-300-400 SCARABEO, 125 RS-893570 More informationQuantity required : 1 |
