Vehicle Exploded View - APRILIA SPORT CITY CUBE 300 IE 2008-2012 APRILIA

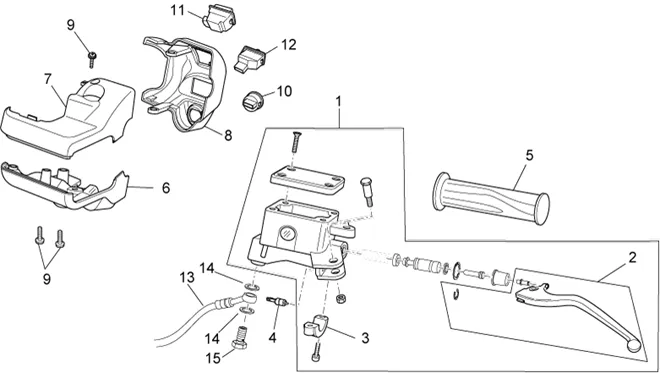

Chassis : 28.20 COMMANDES GCHE
Commandes gche
Search
AP8133733 - POMPA FRENO POST.SX

1
P2R reference P2R reference 48783
Maker reference Maker reference AP8133733

AP8133733 - POMPA FRENO POST.SX

More information

Quantity required : 1

AP8133809 - LEVA FRENO

2
P2R reference P2R reference 48801
Maker reference Maker reference AP8133809

AP8133809-LEVA BRAKE *

More information

Quantity required : 1

AP8213586 - CAVALLOTTO LEVA FRENO

3
P2R reference P2R reference 56509
Maker reference Maker reference AP8213586

AP8213586-CAVALLOTTO LEVA BRAKE

More information

Quantity required : 1

INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953

4
P2R reference P2R reference 67189
Maker reference Maker reference 580953

INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953

More information

Quantity required : 1

860394 - POIGNEE GC.

5
P2R reference P2R reference 40893
Maker reference Maker reference 860394

860394-GRIP GC.

More information

Quantity required : 1

JC56361X92000 - COQUE INFERIEURE;

6
P2R reference P2R reference 63392
Maker reference Maker reference JC56361X92000

JC56361X92000-COQUE INFERIEURE

More information

Quantity required : 1

JC56362X92000 - COQUE SUP.G;

7
P2R reference P2R reference 63393
Maker reference Maker reference JC56362X92000

JC56362X92000-COQUE SUP. G

More information

Quantity required : 1

JC56363X92000 - LOG.COMMANDES EL.

8
P2R reference P2R reference 63394
Maker reference Maker reference JC56363X92000

JC56363X92000-LOG. COMMANDES EL.

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

9
P2R reference P2R reference 71935
Maker reference Maker reference AP8152268

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

More information

Quantity required : 3

BUTTON AVERTISSEUR OEM PIAGGIO 125-200 SCARABEO 2007 > 2012-JC37710X92000

10
P2R reference P2R reference 63118
Maker reference Maker reference JC37710X92000

BUTTON AVERTISSEUR OEM PIAGGIO 125-200 SCARABEO 2007 > 2012-JC37710X92000

More information

Quantity required : 1

SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670

11
P2R reference P2R reference 67982
Maker reference Maker reference 642670

SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670

More information

Quantity required : 1

SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795

12
P2R reference P2R reference 67984
Maker reference Maker reference 6426795

SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795

More information

Quantity required : 1

860671 - TUYAU FREIN ARRIERE

13
P2R reference P2R reference 40998
Maker reference Maker reference 860671

860671-HOSE BRAKE REAR

More information

Quantity required : 1

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

14
P2R reference P2R reference 71283
Maker reference Maker reference AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

More information

Quantity required : 2

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

15
P2R reference P2R reference 71282
Maker reference Maker reference AP8113003

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

More information

Quantity required : 1
