Vehicle Exploded View - APRILIA SPORT CITY CUBE 300 IE 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

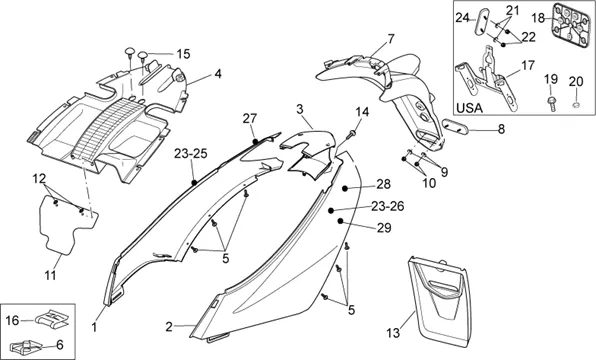

Chassis : 28.16 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/730/Sport_City_Cube_300_IE_2008-2012_28.16.PNG)
1 |
89789100XD2 - QUEUE D, BLEU More informationQuantity required : 1 |
||||||
|
1 |
89789100XE4 - QUEUE D, SILVER More informationQuantity required : 1 |
||||||
|
1 |
89789100XEL - QUEUE D, GRISE More informationQuantity required : 1 |
||||||
|
1 |
89789100XN5 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
1 |
89803400XN6 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
1 |
89803300XN5 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
1 |
89803200BM - QUEUE D, BLANC More informationQuantity required : 1 |
||||||
|
1 |
89708800XN6 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
1 |
89709000BM - QUEUE D, BLANC More informationQuantity required : 1 |
||||||
|
2 |
89000100XEL - QUEUE G, GRISE More informationQuantity required : 1 |
||||||
|
2 |
89000100XN5 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
89678400XN6 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
89708500XN5 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
89708700BM - QUEUE, BLANC More informationQuantity required : 1 |
||||||
|
2 |
89708900XN6 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
89000100XD2 - QUEUE G, BLEU More informationQuantity required : 1 |
||||||
|
2 |
89000100XE4 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
2 |
89709100BM - QUEUE G, BLANC More informationQuantity required : 1 |
||||||
|
3 |
86068300XN5 - QUEUE, NOIR More informationQuantity required : 1 |
||||||
|
3 |
86068300XN6 - QUEUE, NOIR More informationQuantity required : 1 |
||||||
|
3 |
86068300BM - QUEUE, BLANC More informationQuantity required : 1 |
||||||
|
3 |
86068300XD2 - QUEUE, BLEUE More informationQuantity required : 1 |
||||||
|
3 |
86068300XE4 - QUEUE SILVER More informationQuantity required : 1 |
||||||
|
3 |
86068300XEL - QUEUE, GRIS More informationQuantity required : 1 |
||||||
|
4 |
AP8179359 - CHIUSURA INFERIORE CODONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/6/img/69796.jpg)
7 |
860300 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
8 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
9 |
AP8150159 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
10 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 6 |
||||||
|
11 |
AP8178885 - PROTEZIONE POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
12 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450 More informationQuantity required : 2 |
||||||
|
13 |
AP8184278 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/9/img/71869.jpg)
14 |
AP8150362 - VIS AUTOFILETT. TCB 4X1 More informationQuantity required : 1 |
||||||
|
15 |
AP8706409 - GOMMINO SEMISFERICO NERO More informationQuantity required : 2 |
||||||
|
16 |
AP8201764 - CLIP POUR VIS TARAUD More informationQuantity required : 2 |
||||||
|
17 |
853039 - BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
18 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
19 |
AP8152282 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
20 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
21 |
AP8150159 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
||||||
|
23 |
890079 - PLAQUE More informationQuantity required : 2 |
||||||
|
24 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 3 |
||||||
|
25 |
896795 - DECALCO More informationQuantity required : 1 |
||||||
|
25 |
896920 - DECALCO More informationQuantity required : 1 |
||||||
|
25 |
896927 - DECALCO More informationQuantity required : 1 |
||||||
|
25 |
897078 - DECALCO More informationQuantity required : 1 |
||||||
|
25 |
897879 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
896796 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
896921 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
896928 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
897079 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
897880 - DECALCO More informationQuantity required : 1 |
||||||
|
27 |
896797 - DECALCO More informationQuantity required : 1 |
||||||
|
27 |
897876 - DECALCO More informationQuantity required : 1 |
||||||
|
28 |
896798 - DECALCO More informationQuantity required : 1 |
||||||
|
28 |
897877 - DECALCO More informationQuantity required : 1 |
||||||
|
29 |
897878 - DECALCO More informationQuantity required : 2 |
