Vehicle Exploded View - APRILIA SPORT CITY 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

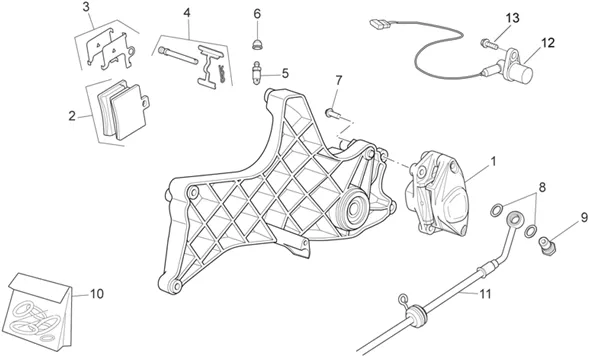

Chassis : 28.38 PINCE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/280/Sport_City_250_E3_2006-2008_28.38.PNG)
1 |
AP8113846 - PINCE FREIN AR More informationQuantity required : 1 |
||||||
|
1 |
AP8133855 - PINZA FRENO POST.D.32 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/9/img/71329.jpg)
2 |
BRAKE PADS REAR OEM PIAGGIO APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO, 125 LEONARDO, SPORT CITY-STREET-AP8113869 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/3/img/71693.jpg)
2 |
BRAKE PADS REAR OEM PIAGGIO APRILIA 125-400-500 SCARABEO LIGHT, 125-250 SPORT-CITY 2006 > 2008, 300 SPORT CITY LIGHT 2008 > 2012, 125 RS 2006 > 2010 (PAIRE)-AP8133946 More informationQuantity required : 1 |
||||||
|
3 |
AP8113870 - PLATINE ANTISIFF. AV-COUPLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/1/img/71331.jpg)
4 |
AP8113871-STUD + SPRING PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
4 |
KIT SPRING BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO-AP8213578 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
5 |
SCREW OF PURGE OEM PIAGGIO COMMON A LA RANGE SCOOTER/MAXI SCOOTER APRILIA-AP8113006 More informationQuantity required : 1 |
||||||
|
5 |
AP8213574-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
6 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
|
6 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
7 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
9 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
|
10 |
AP8213467-KIT REVISION PINCE More informationQuantity required : 1 |
||||||
|
10 |
AP8213579-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
|
11 |
AP8133889 - TUBO FRENO POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/1/3/img/70813.jpg)
12 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA/APRILIA 125-250-300 SPORT-CITY, 250-300-400 SCARABEO, 125 RS-893570 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
