Vehicle Exploded View - APRILIA SPORT CITY 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

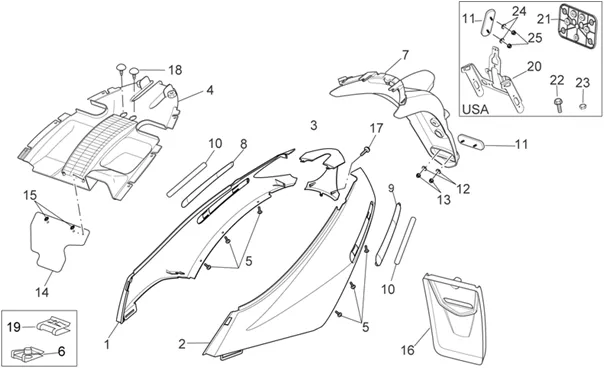

Chassis : 28.16 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/280/Sport_City_250_E3_2006-2008_28.16.PNG)
1 |
AP8179751-SIDE PANEL LAT. RIGHT V. GRG. SH N/DEC More informationQuantity required : 1 |
||||||
|
1 |
AP8179794-CODONE LAT. DX V. GRIG. EXC N/DEC More informationQuantity required : 1 |
||||||
|
1 |
AP8179805-CODONE LAT. DX V. BLU COUT. N/DEC More informationQuantity required : 1 |
||||||
|
1 |
AP8179816-CODONE LAT. DX V. NERO MO. N/DEC More informationQuantity required : 1 |
||||||
|
1 |
AP8184466 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1 |
AP8184526 - QUEUE D, BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8268599 - CODONE LAT.DX V.AZZ.AV.N/DEC More informationQuantity required : 1 |
||||||
|
2 |
AP8179752 - FLANC LAT.GAU. V.GRG.SH N/DEC More informationQuantity required : 1 |
||||||
|
2 |
AP8179795-CODONE LAT. SX V. GRIG. EXC N/DEC More informationQuantity required : 1 |
||||||
|
2 |
AP8179806-CODONE LAT. SX V. BLU COUT. N/DEC More informationQuantity required : 1 |
||||||
|
2 |
AP8179817 - CODONE LAT.SX V.NERO MO.N/DEC More informationQuantity required : 1 |
||||||
|
2 |
AP8184467 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
AP8184527 - QUEUE G, BLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8268600 - CODONE LAT.SX V.AZZ.AV.N/DEC More informationQuantity required : 1 |
||||||
|
3 |
AP8184276 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
AP8179359-CHIUSURA INFERIORE CODONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/6/img/69796.jpg)
7 |
MUD FLAP DOOR PLATE REAR OEM APRILIA 125-200-250-300 SPORT CITY 2006 > 2012-860300 More informationQuantity required : 1 |
||||||
|
8 |
AP8179703-PARACOLPI DX CROMATO More informationQuantity required : 1 |
||||||
|
9 |
AP8179704-PARACOLPI SX CROMATO More informationQuantity required : 1 |
||||||
|
10 |
AP8166438-TARGHETTA PRESPAZ. SPORTCITY More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
11 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
12 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 6 |
||||||
|
14 |
AP8178885-PROTEZIONE POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
15 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 2 |
||||||
|
16 |
Bavolet AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/9/img/71869.jpg)
17 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150362 More informationQuantity required : 1 |
||||||
|
18 |
AP8706409-GOMMINO SEMISFERICO NERO More informationQuantity required : 2 |
||||||
|
19 |
AP8201764-CLIP FOR SCREW TARAUD More informationQuantity required : 2 |
||||||
|
20 |
853039 - BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
21 |
BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
22 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
23 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
24 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 4 |
||||||
|
25 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
