Vehicle Exploded View - APRILIA SPORT CITY 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

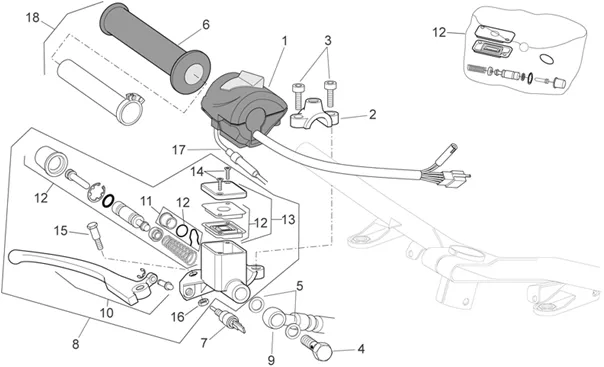

Chassis : 28.21 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/280/Sport_City_250_E3_2006-2008_28.21.PNG)
1 |
AP8127592 - DEVIOLUCI DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/5/img/72225.jpg)
2 |
HALF CLAMP GRIP RIGHT OEM PIAGGIO 50 SR H2O APRILIA 2004 >-AP8213581 More informationQuantity required : 1 |
||||||
|
2 |
AP8590034-CAVALLOTTO DX More informationQuantity required : 1 |
||||||
|
3 |
AP8213299-SCREW CALOTTE More informationQuantity required : 2 |
||||||
|
3 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
4 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/7/5/img/71375.jpg)
6 |
PAIRE GRIP RUBBER OEM PIAGGIO 50 SR APRILIA 2004 >-AP8118699 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
7 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
8 |
AP8213547-PUMP BRAKE ANT. More informationQuantity required : 1 |
||||||
|
8 |
AP8213558-PUMP BRAKE ANT. DX More informationQuantity required : 1 |
||||||
|
8 |
AP8213675-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
8 |
AP8213676 - MA?T. CYL. FREIN AV D. More informationQuantity required : 1 |
||||||
|
9 |
AP8133673 - TUBO FRENO ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/3/5/img/72235.jpg)
10 |
BRAKE LEVER RIGHT HENG-TONG OEM PIAGGIO APRILIA 125 SPORT-CITY 2006 > 2012, 50 SR H2O 2004 > 2009-AP8213602 More informationQuantity required : 1 |
||||||
|
10 |
AP8590035 - LEVA CPL. More informationQuantity required : 1 |
||||||
|
11 |
AP8213455-HUBLOT PUMP BRAKE More informationQuantity required : 1 |
||||||
|
12 |
AP8213600-KIT REVISIONE PUMP More informationQuantity required : 1 |
||||||
|
12 |
AP8590037-KIT REVISIONE PUMP More informationQuantity required : 1 |
||||||
|
13 |
AP8213598-COVER TANK More informationQuantity required : 1 |
||||||
|
13 |
AP8590038-COVER TANK CPL. More informationQuantity required : 1 |
||||||
|
14 |
AP8213400-SCREW COVER PUMP More informationQuantity required : 2 |
||||||
|
14 |
AP8213583-SCREW COVER PUMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
15 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
15 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
16 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
|
16 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
|
17 |
AP8114500-CABLE ACCELERATORE More informationQuantity required : 1 |
||||||
|
18 |
AP8118681 - COMANDO GAS CON MANOPOLA More informationQuantity required : 1 |
