Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

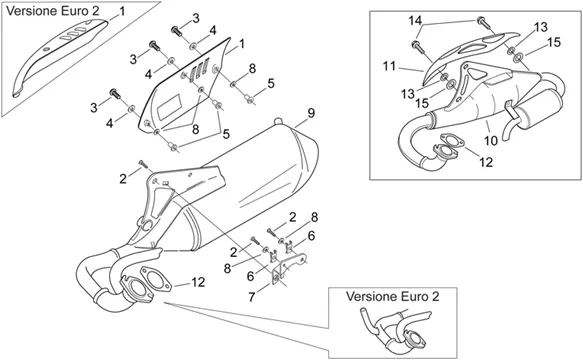

Chassis : 28.22 GROUPE ECHAPPEMENT CATALYTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_28.22.PNG)
1 |
AP8219437 - PROT.POT CHR.NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8219487-PROTECTOR SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
3 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
4 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
5 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
7 |
AP8234150 - PLAQUE GARDE-BOUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.jpg)
8 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 3 |
||||||
|
9 |
AP8219393 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
|
9 |
Pot catalytique |
||||||
|
9 |
AP8219584 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
|
10 |
AP8219484 - POT CATALYTIQUE - I More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/5/img/72265.jpg)
11 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50 NRG POWER 2007 >/APRILIA 50 SR H2O 2000 >, SONIC 1998 > 2008, RALLY 1996 > 1999, AREA 1998 > 2000, SCARABEO DITECH 2001 > 2001-AP8219452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
12 |
AP8219212-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
13 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/6/img/97096.jpg)
14 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152342 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
15 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 1 |
