Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

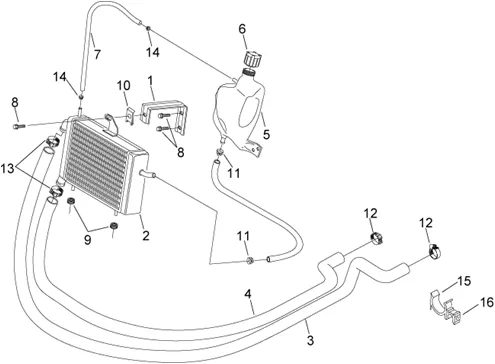

Chassis : 28.16 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_28.16.PNG)
1 |
AP8234132 - PLAQ.SUP. RADIATEUR; More informationQuantity required : 1 |
||||||
|
2 |
AP8202208 - RADIATEUR GRIS More informationQuantity required : 1 |
||||||
|
3 |
AP8220475-TUBE DE CYLINDER HEAD RADIATOR More informationQuantity required : 1 |
||||||
|
4 |
AP8220476-TUBE PUMP RADIATOR More informationQuantity required : 1 |
||||||
|
5 |
AP8239088 - VASE D'EXPANSION; More informationQuantity required : 1 |
||||||
|
6 |
AP8202088 - BOUCHON VSE EXPANS. More informationQuantity required : 1 |
||||||
|
7 |
AP8220508 - TUBE REMPL. RADIAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
|
9 |
Caoutchouc supp.radiat.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
11 |
CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/0/img/72870.jpg)
12 |
CLAMP HOSE (D 27. 1) OEM PIAGGIO COMMON A LA RANGE-CM001909 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/6/0/4/img/142604.jpg)
13 |
CLAMP SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM001906 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
14 |
CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349 More informationQuantity required : 2 |
||||||
|
15 |
AP8201807-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
16 |
AP8201808-GUIDE-CABLE More informationQuantity required : 2 |
