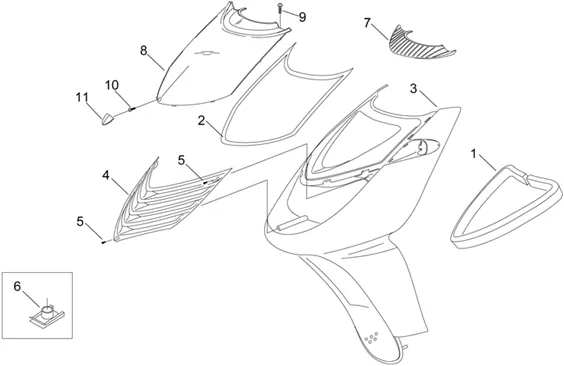

Chassis : 28.05 CARROSSERIE AV. - TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_28.05.PNG)
1 |
AP8202073-GASKET LEG SHIELD/PARABOLE More informationQuantity required : 1 |
||||||
|
2 |
AP8202074 - JOINT TABLIER/TRANSP. More informationQuantity required : 1 |
||||||
|
3 |
AP8248028 - TABLIER AV GRIS BLADE; More informationQuantity required : 1 |
||||||
|
3 |
AP8248938 - TABLIER AV JAUNE CHR.; More informationQuantity required : 1 |
||||||
|
3 |
AP8249801-TAB. AV BLUE REEF More informationQuantity required : 1 |
||||||
|
3 |
AP8258366-TAB. AV HOT RED More informationQuantity required : 1 |
||||||
|
3 |
AP8258375 - TABLIER AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8248005 - TABLIER AV NOIR AP.; More informationQuantity required : 1 |
||||||
|
3 |
AP8268232 - SCUDO ANTERIORE V.NERO APRILIA More informationQuantity required : 1 |
||||||
|
3 |
AP8268426 - SCUDO ANT.V.ROSSO FL.N/DEC More informationQuantity required : 1 |
||||||
|
3 |
AP8268433 - SCUDO ANT.V.BIANCO APR.N/DEC. More informationQuantity required : 1 |
||||||
|
3 |
AP8268559 - SCUDO ANT.V.NERO DIABLO N/DEC More informationQuantity required : 1 |
||||||
|
3 |
AP8268738 - TABLIER AV.P.JAUNE More informationQuantity required : 1 |
||||||
|
3 |
AP8268742 - TABLIER AV. PEINT BLEU More informationQuantity required : 1 |
||||||
|
3 |
AP8184061 - SHIELD RED More informationQuantity required : 1 |
||||||
|
3 |
Tablier AV bl. sol.; |
||||||
|
4 |
AP8239285 - GRILLE RADIATEUR NOIR AP.; More informationQuantity required : 1 |
||||||
|
4 |
Grille de radiateur; |
||||||
|
4 |
AP8248023 - GRILLE DE RADIATEUR; More informationQuantity required : 1 |
||||||
|
4 |
AP8248933-GRILLE RADIATOR JAUNE CHR. More informationQuantity required : 1 |
||||||
|
4 |
AP8249796 - GRILLE RADIATEUR BLEU REEF; More informationQuantity required : 1 |
||||||
|
4 |
AP8258361 - GRILLE RADIATEUR ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8258370 - GRILLE RADIATEUR GRISE; More informationQuantity required : 1 |
||||||
|
4 |
AP8268424-GRIGLIA RADIATORE V. ROSSO FLUO More informationQuantity required : 1 |
||||||
|
4 |
AP8268430 - GRIGLIA RADIATORE V.BIANCO APR More informationQuantity required : 1 |
||||||
|
4 |
AP8268555 - GRIGLIA RADIATORE V.NERO DIAB. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
5 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
|
7 |
Collier, moût |
||||||
|
7 |
AP8220525-CLAMP, GREY More informationQuantity required : 1 |
||||||
|
7 |
AP8248033-CLAMP, BLUE MET. More informationQuantity required : 1 |
||||||
|
7 |
AP8248895-CLAMP BLACK MET. More informationQuantity required : 1 |
||||||
|
7 |
AP8248923 - COLLIER, GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/5/4/img/56354.jpg)
8 |
AP8212948-ECRAN HEADLAMP More informationQuantity required : 1 |
||||||
|
8 |
AP8224016 - ECRAN PHARE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
9 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
|
10 |
AP8150427-SCREW More informationQuantity required : 2 |
||||||
|
11 |
AP8220529 - BOUCHON DE VIS More informationQuantity required : 1 |
