Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

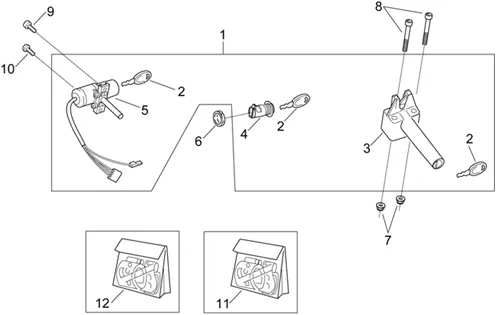

Chassis : 28.31 DÉCALCO ET KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_28.31.PNG)
1 |
AP8202014 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
2 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
3 |
AP8202059-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/3/img/71233.jpg)
4 |
GLOVE BOX LOCK "PIAGGIO GENUINE PART" 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612 More informationQuantity required : 1 |
||||||
|
5 |
AP8202136 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
6 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
8 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
9 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
10 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
|
11 |
852488-PLATE More informationQuantity required : 1 |
||||||
|
11 |
Décalco série; |
||||||
|
11 |
AP8247885 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
Décalco série; |
||||||
|
11 |
Décalco série; |
||||||
|
11 |
Décalco série; |
||||||
|
11 |
AP8257136 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
AP8257137 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
AP8257413 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
AP8267589 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
AP8267590 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
Décalco série |
||||||
|
11 |
AP8277041 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
11 |
Décalco série |
||||||
|
11 |
AP8277301 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
11 |
AP8277611 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
11 |
AP8277612 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
11 |
AP8277729-DECAL SERIE More informationQuantity required : 1 |
||||||
|
11 |
AP8277730 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
12 |
AP8166478-DECAL SERIE TECNICA More informationQuantity required : 1 |
