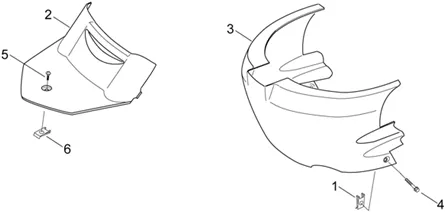

Chassis : 28.14 CARROSSERIE POSTERIEURE I - DESSOUS SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
1 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
2 |
AP8239295 - ABATT.ACCES BUGIE VIOLET; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8248003 - ABATT.ACCES BUGIE GRIS; More informationQuantity required : 1 |
|||||||||
|
2 |
Porte acc.bougie fu.; |
|||||||||
|
2 |
Porte acc.bougie bl.; |
|||||||||
|
2 |
AP8248904 - VOLET ACCES BOUGIE N.; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8239995 - DESSOUS DE SLLE GRIS T.; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8248073 - DESS. DE SLLE VI.MO?T; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8248328 - DESSOUS SELLE FUCHSIA; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8248349 - DESSOUS SELLE BLEU; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8248892-DESSOUS SEAT BLACK MET. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
4 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
|||||||||
|
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
5 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
|||||||||
