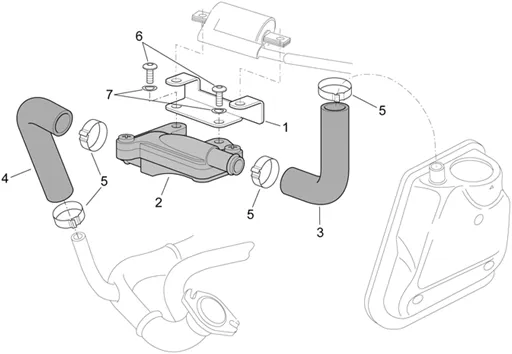

Chassis : 28.22 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_28.22.PNG)
1 |
AP8234215 - RESSORT SUPPORT; More informationQuantity required : 1 |
||||||
|
2 |
AP8206989 - SOUPAPE SAS More informationQuantity required : 1 |
||||||
|
3 |
AP8220634-HOSE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
4 |
AP8220635 - TUYAU AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
5 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
||||||
|
7 |
AP8150182-WASHER ELASTIC COURBE More informationQuantity required : 2 |
