Vehicle Exploded View - DERBI SONAR 50 Sonar 50 2T 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

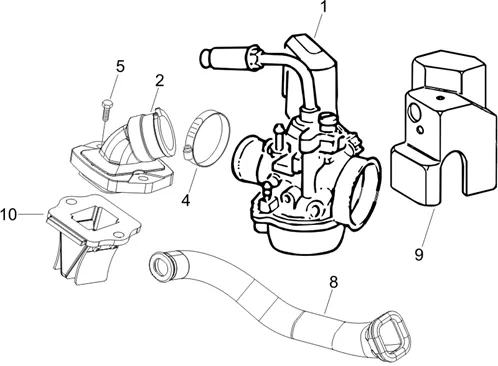

Moteur : 01.39 CARBURATEUR COMPLET - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1060/Sonar_50_2T_2009_(EMEA)_01.39.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/4/4/img/70544.jpg)
1 |
CARBURETTOR SCOOTER OEM PIAGGIO 50 FLY 2T 2005 >, LIBERTY 2T 2000 >, NRG MC3 2000 >, TYPHOON 2004 > 2010, ZIP 2T 2000 >-874672 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/6/img/152746.jpg)
2 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA 50 LX, PRIMAVERA, VESPA-S, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR-1A008824 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/4/img/149124.jpg)
4 |
1A006280 - COLLIER More informationQuantity required : 1 |
|||||||||
|
4 |
1A006280 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
5 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
|||||||||
|
5 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/0/img/66780.jpg)
8 |
DUCT AIR OEM PIAGGIO 50 2T FLY, TYPHOON, LX, STALKER, NRG-488129 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/4/img/68994.jpg)
9 |
COIFFE/COVER OF CARBURETTOR OEM PIAGGIO 50 COMMON A LA RANGE-832186 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/1/img/68691.jpg)
10 |
CLAPET OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY (N- FRAME RECOMMANDE)-82774R More informationQuantity required : 1 |
|||||||||
