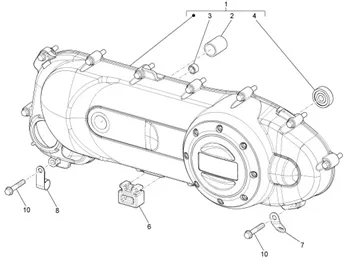

Vehicle Exploded View - DERBI SONAR 50 Sonar 50 2T 2009 (EMEA)

	P2R reference	68557
	Maker reference	8256465

COVER TRANSMISSION OEM PIAGGIO GILERA 50 DNA 2002 >-8256465

More information

Quantity required : 1

	P2R reference	66167
	Maker reference	286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

	P2R reference	66417
	Maker reference	431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

	P2R reference	68524
	Maker reference	82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

	P2R reference	66039
	Maker reference	259625

BUFFER DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, VESPA LX, VESPA-S/APRILIA 50 SR, SPORT-CITY, SCARABEO-259625

More information

Quantity required : 1

	P2R reference	69338
	Maker reference	844964

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

More information

Quantity required : 1

	P2R reference	67101
	Maker reference	573918

CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918

More information

Quantity required : 1

	P2R reference	66367
	Maker reference	414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 13
