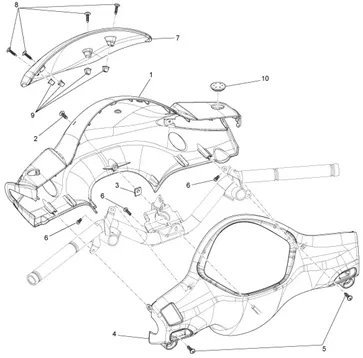

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1060/Sonar_50_2T_2009_(EMEA)_03.01.png)
1 |
652835 - COUVRE POIGNEE BRUT More informationQuantity required : 1 |
||||||
|
1 |
65283500BR - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
1 |
65283500R7 - COUVRE POIGNEE BRUT More informationQuantity required : 1 |
||||||
|
1 |
65283500EU - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
1 |
652835 - COUVRE POIGNEE BRUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
2 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
||||||
|
4 |
656413000C-COVER STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/1/img/67901.jpg)
5 |
SCREW CRUCIFORME AUTOTARAUDEUSE (2. 8X20) OEM PIAGGIO COMMON A LA RANGE-640939 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
6 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 3 |
||||||
|
7 |
WIND SHIELD "PIAGGIO GENUINE PART" PIAGGIO 50-125 LIBERTY SPORT 2006>2008 -624532- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
8 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
9 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/1/img/67021.jpg)
10 |
CAP DE UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO FLY 50-125 2005 > 2011, LIBERTY 50-125 2006 > 2017-562897 More informationQuantity required : 1 |
