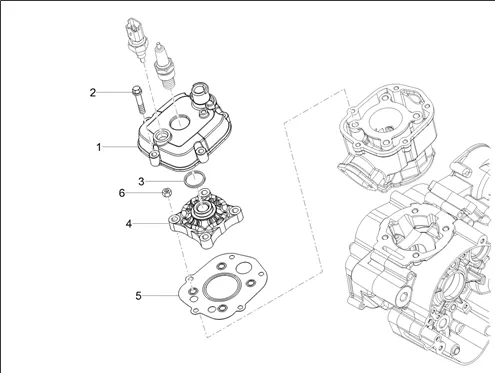

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 Limited e4 2018 (EMEA)

Moteur : 03.09 COUVRE-CULASSE

	P2R reference	149547
	Maker reference	CM2869025

COVER CYLINDER HEAD OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >-CM2869025

More information

Quantity required : 1

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 5

	P2R reference	156834
	Maker reference	1A014908

O-RING COVER DE CYLINDER HEAD OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS 2006 >, RS4 2011 >-1A014908

More information

Quantity required : 1

	P2R reference	149148
	Maker reference	1A0089765

CYLINDER HEAD OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS 2006 >, RS4 2011, SX, RX 2006 >-1A0089765

More information

Quantity required : 1

	P2R reference	70396
	Maker reference	1A010569

CYLINDER HEAD GASKET OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2010 >/APRILIA RX, SX, RS 2006 >, RS4 2011 >-1A010569

More information

Quantity required : 1

	P2R reference	66509
	Maker reference	436947

NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947

More information

Quantity required : 4
