Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 Limited e4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

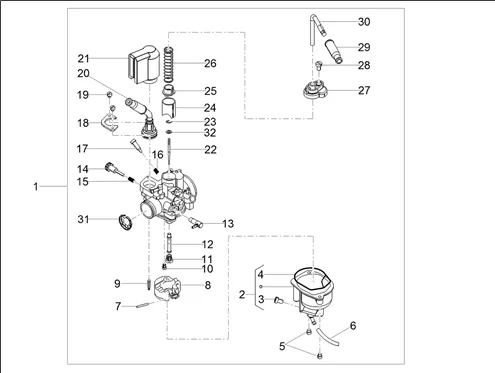

Moteur : 03.08 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1037/Senda_SM_50_Limited_e4_2018_(EMEA)_03.08.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/4/img/176544.jpg)
1 |
CARBURETTOR OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >, RCR 2018 >-CM2900016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/9/img/151719.jpg)
2 |
CARBURETTOR FLOAT BOWL OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >/APRILIA 50 SX, RX, RS 2018 >-1A011315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/3/img/66423.jpg)
3 |
SCREW OF CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-432456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/4/img/66674.jpg)
4 |
FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR-485519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
5 |
SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862 More informationQuantity required : 2 |
||||||
6 |
CM112003-HOSE DE PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
7 |
SPINDLE FLOTTEUR PHVA OEM PIAGGIO COMMON A LA RANGE-288881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/9/img/146199.jpg)
8 |
FLOTTEUR CARBU DELLORTO PHBN/PHVA OEM PIAGGIO COMMON A LA RANGE-288882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/7/img/73147.jpg)
9 |
POINTEAU OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA/APRILIA 50 RS, RX, SX, MOJITO-CM128502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/6/6/img/73066.jpg)
10 |
GICLEUR DE RALENTI (30) OEM PIAGGIO COMMON A LA RANGE-CM102101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/5/1/img/73051.jpg)
11 |
GICLEUR (68) OEM DERBI 50 SENDA 2018 >-CM101719 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/2/img/73092.jpg)
12 |
DIFFUSEUR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-CM106230 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/5/img/66485.jpg)
13 |
FITTING ARRIVE D'HUILE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-436206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/5/img/68725.jpg)
14 |
SCREW REGLAGE THROTTLE BODY DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-828074 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
15 |
SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
16 |
SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/2/img/73102.jpg)
17 |
SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM107701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
18 |
PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
19 |
SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/3/img/73243.jpg)
20 |
STARTER COMPLETE OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >/APRILIA 50 RX, SX 2018 >-CM146204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/7/img/66687.jpg)
21 |
COIFFE DE CARBURETTOR DELLORTO OEM PIAGGIO COMMON A LA RANGE-485671 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/1/img/73101.jpg)
22 |
CARBURETTOR NEEDLE OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-CM107514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
23 |
CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/2/img/73182.jpg)
24 |
BOISSEAU/VOLET DE THROTTLE OEM DERBI 50 SENDA 2010 >/NRG/APRILIA 50 RS, SX, RX, SR-CM141711 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
25 |
BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
26 |
SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/5/img/66415.jpg)
27 |
COVER BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE-431654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
28 |
SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/7/img/70587.jpg)
29 |
CAPUCHON RUBBER DE GAINE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-875551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
30 |
COUDE DE CABLE DE THROTTLE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-113903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/4/img/68714.jpg)
31 |
CALIBREUR AIR OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827892 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/1/img/151721.jpg)
32 |
WASHER AIGUILLE OF CARBURETTOR OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >/APRILIA 50 SX, RX 2018 >-CM295501 More informationQuantity required : 1 |
