Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 Limited e4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

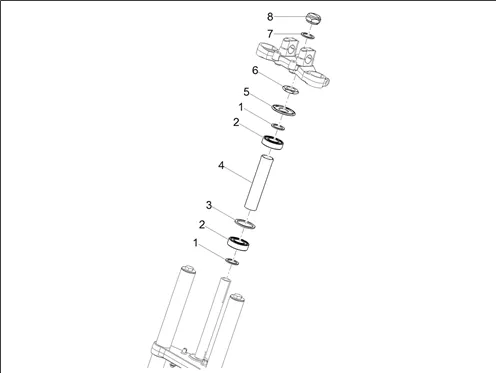

Guidon - commandes : 07.01 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1037/Senda_SM_50_Limited_e4_2018_(EMEA)_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
1 |
WASHER DE SET OF STEERING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX-00008902630 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
2 |
BEARING (25X52X15) DE REAR WHEEL (6205) OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 50-125 RS4, 900-1200 DORSODURO/GILERA 50 SMT, RCR 2018 >/MOTO GUZZI 1400 CALIFORNIA, AUDACE-AP8110093 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/8/img/65048.jpg)
3 |
WASHER COUSSINET TUBE STEERING OEM PIAGGIO 50 A BOX-00H06500451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/2/img/65042.jpg)
4 |
TUBE SEPARATION BEARING STEERING OEM PIAGGIO 50 A BOX-00H06303401 More informationQuantity required : 1 |
||||||
5 |
2B004682-WASHER D'AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/4/img/63924.jpg)
6 |
NUT UPPER DE FORK OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00200112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/7/1/img/64171.jpg)
7 |
WASHER DE STEERING OEM DERBI 50 SENDA/APRILIA 50 RX, SX-00H00202101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/6/6/img/64166.jpg)
8 |
NUT MOUNTING PIVOT DE FORK (M24/100) OEM PIAGGIO 50 GILERA SMT RACING 2011 > 2014/DERBI SENDA 2000 > 2012//APRILIA RX, SX 2006 > 2010-00H00201111 More informationQuantity required : 1 |
