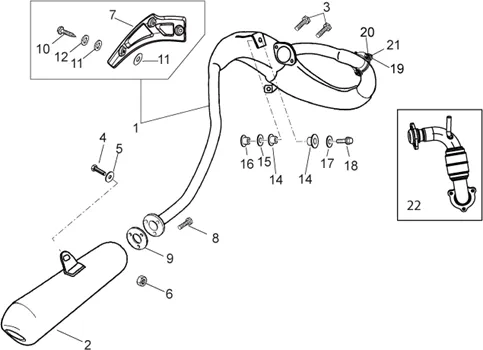

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 DRD X-Treme Limited Edit E2 2014-2017

	P2R reference	70332
	Maker reference	867398

867398 - TUYAU D#ECHAPPEMENT

	P2R reference	70326
	Maker reference	867306

SILENCER EXHAUST OEM PIAGGIO APRILIA 50 SX, RX-867306

	P2R reference	70331
	Maker reference	867397

867397-HOSE D'ECHAPPEMENT

	P2R reference	187937
	Maker reference	867335

867335-HOSE D-ECHAPPEMENT

	P2R reference	69918
	Maker reference	86176R

EXHAUST SILENCER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>2017 -86176R

	P2R reference	69935
	Maker reference	86195R

86195R - POT D'ECHAPPEMENT

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	71950
	Maker reference	AP8152288

SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288

	P2R reference	51994
	Maker reference	AP8161085

SPACER (8. 2X14X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8161085

	P2R reference	71959
	Maker reference	AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

	P2R reference	69826
	Maker reference	861020

EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -861020

	P2R reference	63895
	Maker reference	00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

	P2R reference	64792
	Maker reference	00H03404321

GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321

	P2R reference	71957
	Maker reference	AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

	P2R reference	63922
	Maker reference	00F04201361

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	72276
	Maker reference	AP8220241

RUBBER EXHAUST OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR/APRILIA 50 RS, FUTURA, RX, SX-AP8220241

	P2R reference	50837
	Maker reference	AP8150101

WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101

	P2R reference	139429
	Maker reference	8674035

NUT MOUNTING EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 >/APRILIA SX, RX-8674035

	P2R reference	71810
	Maker reference	AP8150018

WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018

	P2R reference	71948
	Maker reference	AP8152286

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	70102
	Maker reference	865093

GASKET- FROM PIPE TO EXHAUST TO MAIN BODY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/APRILIA 50 RX, SX 2006>, RS 2006> -865093

	P2R reference	70325
	Maker reference	867304

867304-HOSE D'ECHAPPEMENT
