Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 DRD X-Treme Limited Edit E2 2014-2017
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

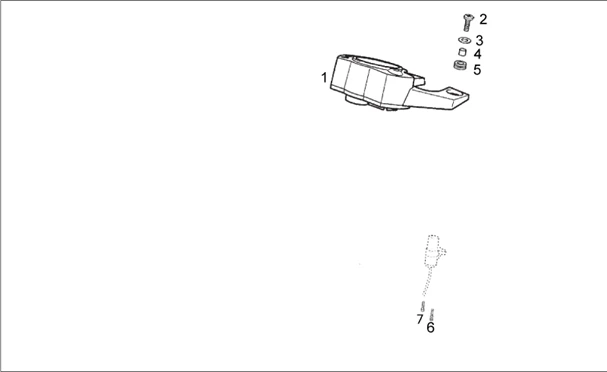

Chassis : 66.11 TABLEAU BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1183/Senda_SM_50_DRD_X-Treme_Limited_Edit_E2_2014-2017_66.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/7/7/img/70277.jpg)
1 |
SPEEDOMETER "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" GILERA 50 RCR, SMT 2011>/APRILIA 50 RX, SX 2011> -866996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
2 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
3 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
4 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
5 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/0/img/71930.JPG)
6 |
SCREW A ARRACHEMENT (M8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152229 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
