Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 DRD X-Treme Limited Edit E2 2014-2017
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

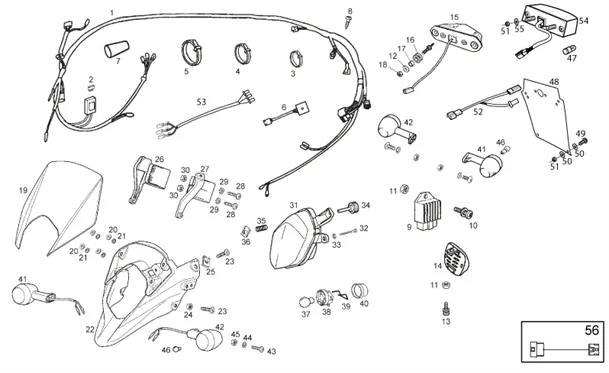

Chassis : 66.07 FEUX - CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1183/Senda_SM_50_DRD_X-Treme_Limited_Edit_E2_2014-2017_66.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/2/7/img/66327.jpg)
1 |
HARNESS ELECTRIC OEM DERBI 50 SENDA 2011 > 2017/GILERA 50 SMT, RCR 2011 > 2017-2D000281 More informationQuantity required : 1 |
|||||||||
2 |
00H01001911-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
3 |
ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531 More informationQuantity required : 1 |
|||||||||
|
4 |
ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
6 |
CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
7 |
PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961 More informationQuantity required : 1 |
|||||||||
|
8 |
00011061300-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/8/img/70888.jpg)
9 |
REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
10 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
12 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
13 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/2/img/64382.jpg)
14 |
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/6/img/64386.jpg)
15 |
LAMP REAR OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-00H01009321 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
16 |
RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
17 |
SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/9/img/127189.jpg)
19 |
HEAD OF FORK/BULLE FRONT RED OEM DERBI 2010 > 2017/GILERA 50 SMT, RCR 2011 > 2017-86420600W5R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/0/4/4/img/158044.jpg)
19 |
HEAD OF FORK/BULLE FRONT BLUE OEM DERBI 2010 > 2017/GILERA 50 SMT, RCR 2011 > 2017-86420600W0A More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/9/img/70049.jpg)
19 |
HEAD OF FORK/BULLE FRONT BLACK OEM DERBI 50 SENDA 2010 > 2017/GILERA 50 SMT, RCR 2011 > 2017/APRILIA 125 SX, RX 2018 >-86420600W0N More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/8/img/70048.jpg)
19 |
HEAD OF FORK/BULLE FRONT WHITE OEM DERBI 50 SENDA 2010 > 2017/GILERA 50 SMT, RCR 2011 > 2017-86420600W0B More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
20 |
WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
21 |
WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/7/3/img/70273.jpg)
22 |
MASQUE DE HEAD OF FORK OEM PIAGGIO 50 GILERA SMT, RCR 2011 > 2017/DERBI SENDA 2010 > 2017-866980 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
23 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
|
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/9/img/63589.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
25 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/5/4/img/70254.jpg)
26 |
FRONT RIGHT SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 XS, RX -866933 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/5/5/img/70255.jpg)
27 |
FRONT LEFT SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -866934 More informationQuantity required : 1 |
|||||||||
|
28 |
AP8152060 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
29 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
|||||||||
|
30 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/1/1/img/70111.jpg)
31 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM DERBI 50 SENDA 2005 > 20017/GILERA 50 SMT, RCR 2011 > 2017-865385 More informationQuantity required : 1 |
|||||||||
|
31 |
00H01029011-LAMP UNIT COMPLETE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/8/img/63678.jpg)
32 |
SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501 More informationQuantity required : 1 |
|||||||||
|
33 |
VIS |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/8/img/64378.jpg)
34 |
SCREW REGLAGE LAMP UNIT OEM DERBI 50 SENDA 2008 > 2017/GILERA 50 SMT, RCR 2011 > 2017-00H01003101 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/7/img/64687.jpg)
35 |
SPRING REGLAGE DE HEADLAMP OEM PIAGGIO 50 GILERA SMT 2011 > 2017/DERBI SENDA 2010 > 2017-00H02302501 More informationQuantity required : 1 |
|||||||||
|
36 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
37 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
38 |
DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
39 |
SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/3/img/65003.jpg)
40 |
PROTECTOR AMPOULE DE HEADLAMP OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 RX, SX-00H05703141 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/6/img/69986.jpg)
41 |
FRONT RIGHT INDICATOR OU REAR LEFT OEM DERBI 50 SENDA DRD 2005 > 2017/GILERA 50 SMT, RCR 2011 >-863008 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/7/img/69987.jpg)
42 |
FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
43 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 1 |
|||||||||
|
44 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
|||||||||
|
45 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
|||||||||
|
46 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/9/img/64379.jpg)
47 |
00H01003131-AMPOULE 12V-5W More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/1/img/69851.jpg)
48 |
BRACKET PLATE IMMATRICULATION OEM PIAGGIO 50 GILERA RCR, SMT 2011 >/DERBI SENDA 2010 > 2017/APRILIA SX, RX 2011 > 2017-861313 More informationQuantity required : 1 |
|||||||||
|
49 |
00008051600-BOLT BOMBEE ALLEN 5M80X16 More informationQuantity required : 1 |
|||||||||
|
50 |
00031105000-WASHER PLATE M5 DIN125 More informationQuantity required : 1 |
|||||||||
|
51 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/2/img/69852.jpg)
52 |
WIRING LUMIERE PLATE OEM DERBI 50 SENDA DRD 2010 > 2017-861315 More informationQuantity required : 1 |
|||||||||
|
53 |
863523-WIRING LAMP AV More informationQuantity required : 1 |
|||||||||
|
54 |
00H05700471-LAMP REGISTRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/0/img/64840.jpg)
55 |
WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/0/3/img/146203.jpg)
56 |
WIRING DIODE-CONDENSATEUR OEM DERBI 50 SENDA DRD 2010 > 2017/GILERA 50 SMT 2011 > 2017-2D000272 More informationQuantity required : 1 |
|||||||||
