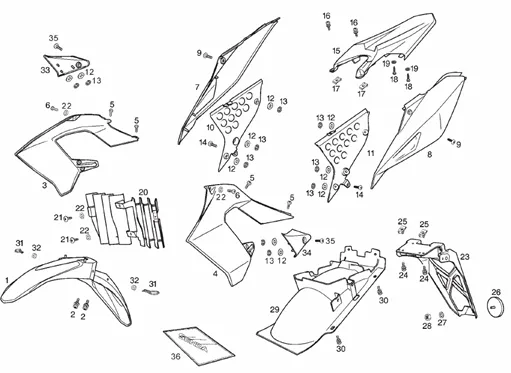

Vehicle Exploded View - DERBI SENDA R 50 SENDA R DRD PRO 2005-2007 E2 3ed

	P2R reference	190837
	Maker reference	00H007240215

00H007240215 - R-GUARDAB.DLNT.RJ.FL.R DRD 50CC

	P2R reference	190838
	Maker reference	00H007240225

00H007240225 - R-GUARDAB.DLNT.AZ.AÐ.R DRD 50CC

	P2R reference	64151
	Maker reference	00G06800021

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	187800
	Maker reference	20H04416771

FAIRING/DEFLECTOR TANK RIGHT OEM DERBI 50 SENDA DRD PRO 2005 > 2011 UNPAINTED-20H04416771

	P2R reference	190839
	Maker reference	00H044167815

00H044167815 - TAPA LAT.DPSTO.IZ.RJ.FL.DRD 50

	P2R reference	187801
	Maker reference	20H04416781

FAIRING/DEFLECTOR TANK LEFT OEM DERBI 50 SENDA DRD PRO 2005 > 2011 UNPAINTED-20H04416781

	P2R reference	187802
	Maker reference	86430700WB15

86430700WB15 - R-TAPA LAT.DEPO.IZ.BL.AJ.DRD PRO 07

	P2R reference	187803
	Maker reference	20H00510071

20H00510071 - COUVERCLE LATERAL D

	P2R reference	187805
	Maker reference	20H00510081

BODY PANEL/SIDE PANEL REAR LEFT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011 BLANCHE-20H00510081

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	187808
	Maker reference	00H01527231

FAIRING SOUS SEAT RIGHT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H01527231

	P2R reference	187809
	Maker reference	00H06801321

FAIRING SOUS SEAT LEFT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H06801321

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	187810
	Maker reference	20H00617161

20H00617161 - QUEUE

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	187813
	Maker reference	00H03808301

GRILLE VENTILATION DE RADIATOR OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H03808301

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	187814
	Maker reference	00H00719341

00H00719341 - SUPL. GARDE BOUE AR.

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	72325
	Maker reference	AP8224164

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

	P2R reference
	Maker reference	031040

VIS

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	187815
	Maker reference	00H00709121

00H00709121 - GARDE-BOUE

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	187816
	Maker reference	00H02204461

BRACKET DE FAIRING RIGHT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H02204461

	P2R reference	187817
	Maker reference	00H05905521

BRACKET DE FAIRING LEFT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H05905521

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	190840
	Maker reference	00H05174651

00H05174651-R-JUEGO CALCAS SD R PRO RJ. FL

	P2R reference	190841
	Maker reference	861613

861613 - R-JUEGO CALCAS SD.R DRD PRO

	P2R reference	190842
	Maker reference	86428300WB1

86428300WB1 - R-CTO.KIT CALCAS R DRD PRO 50 BLN.AJD.0
