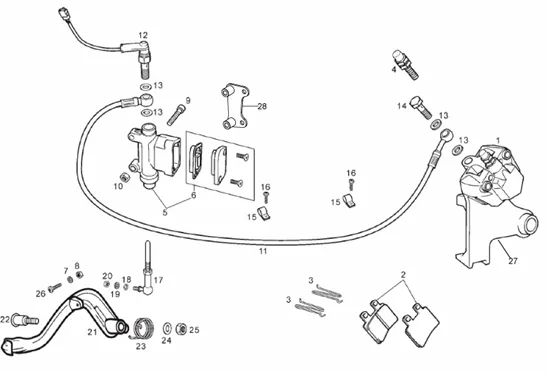

Vehicle Exploded View - DERBI SENDA R 50 SENDA R DRD PRO 2005-2007 E2 3ed

	P2R reference	187872
	Maker reference	00H01108581

00H01108581 - ETRIER FREIN ARR.

	P2R reference	187873
	Maker reference	2B000746

2B000746 - PINCE FREIN AR

	P2R reference	187874
	Maker reference	00H01304931

00H01304931-ENS. BRAKE PAD

	P2R reference	72838
	Maker reference	B044223

BRAKE PAD REAR (SBS S60 HH) OEM DERBI 50 SENDA DRD 2005 > 2011-B044223

	P2R reference	64467
	Maker reference	00H01301831

SPRING BRAKE PAD OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 > 2010-00H01301831

	P2R reference	70045
	Maker reference	864123

SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123

	P2R reference	70305
	Maker reference	867240

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240

	P2R reference	187875
	Maker reference	00H01111181

00H01111181 - ENSEMBLE COMMANDE FREIN ARRIER

	P2R reference	70264
	Maker reference	866955

BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2005 >/APRILIA SX, RX 2011 >-866955

	P2R reference	69962
	Maker reference	862534

COVER DE BRAKE MASTER CYLINDER FRONT/REAR OEM PIAGGIO APRILIA 50-125 RS 2011 > 862534

	P2R reference	70306
	Maker reference	867241

COVER MAITRE CYLINDER REAR OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2005 >/APRILIA 50 SX, RX 2011 > 867241

	P2R reference	63598
	Maker reference	000000330405

WASHER PLATE DE MAINTIEN SPROCKET BV (4) OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010/DERBI 50 SENDA 2006 > 2010APRILIA 50 SX, RX, RS 2006 > 2010-00000033040

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	187876
	Maker reference	00H01115081

00H01115081 - TIGE DE FREIN

	P2R reference	187877
	Maker reference	867612

HOSE/FLEXIBLE/HOSE OF BRAKE REAR J. JUAN OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-867612

	P2R reference	64372
	Maker reference	00H01001701

INTERRUPTEUR/CONTACTEUR STOP REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H01001701

	P2R reference	187878
	Maker reference	00H01002701

00H01002701 - CONTACTEUR DE STOP

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	187677
	Maker reference	00H00901261

SCREW FLEXIBLE OF BRAKE OEM PIAGGIO 50 DRD 2005 < 2011-00H00901261

	P2R reference	70302
	Maker reference	867237

FITTING OF BRAKE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-867237

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	187879
	Maker reference	00H01105611

00H01105611-ROD OF BRAKE

	P2R reference	187880
	Maker reference	867620

867620 - POUSSOIR CDE MAI-CYL.

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	154536
	Maker reference	865585

LEVER/PEDAL OF BRAKE REAR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-865585

	P2R reference	187881
	Maker reference	00H01103171

00H01103171 - VIS

	P2R reference	187882
	Maker reference	00H01111011

00H01111011-SPRING

	P2R reference	63655
	Maker reference	000055275405

SPACER DE PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00005527540

	P2R reference	63715
	Maker reference	000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

	P2R reference	63563
	Maker reference	000000024205

00000002420 - VIS

	P2R reference	187883
	Maker reference	867613

867613 - SUPPORT

	P2R reference	187884
	Maker reference	867617

867617 - SUPPORT
