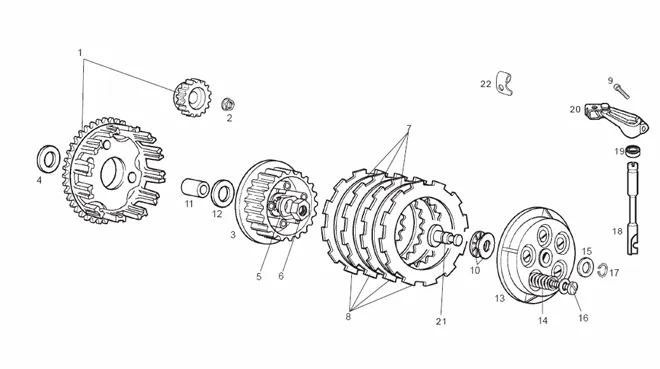

Vehicle Exploded View - DERBI SENDA R 50 SENDA R DRD PRO 2005-2007 E2 3ed

	P2R reference	66965
	Maker reference	497643

TAMBOUR CLUTCH (D23) 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2013, RS 2006 > 2010, RS4 2011 >/DERBI 50 SENDA 2006 > (PREVOIR SPROCKET FOR MODEL EURO 2)-497643

	P2R reference	69490
	Maker reference	847217

NUT EPAULE SERRAGE SPROCKET ENGINE (10X100) OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2005 >/APRILIA SX, RX, RS 2006 >, RS-4 2011 >-847217

	P2R reference	69428
	Maker reference	847045

NOIX D'CLUTCH OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 RX, SX 2018 >-847045

	P2R reference	69491
	Maker reference	847218

WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA 50-125 SX, RX, RS-847218

	P2R reference	70608
	Maker reference	876418

WASHER BRAKE D'EMBRAYAGE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA 50 RS4 2011 >, 50 RX, SX 2006 >-876418

	P2R reference	69492
	Maker reference	847221

NUT NOIX CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 >-847221

	P2R reference	69426
	Maker reference	847043

DISC CLUTCH MENE OEM DERBI 50 SENDA, GPR 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RS, TUONO, SX, RX 2006 >-847043

	P2R reference	69427
	Maker reference	847044

DISC CLUTCH MENANT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847044

	P2R reference	68436
	Maker reference	667152

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

	P2R reference	69493
	Maker reference	8472226

BEARING DE ROD OF CONTROL CLUTCH OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >, RS4 2011 >-8472226

	P2R reference	66965
	Maker reference	497643

TAMBOUR CLUTCH (D23) 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2013, RS 2006 > 2010, RS4 2011 >/DERBI 50 SENDA 2006 > (PREVOIR SPROCKET FOR MODEL EURO 2)-497643

	P2R reference	187216
	Maker reference	1A009075

WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-1A009075

	P2R reference	187216
	Maker reference	847042

WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-1A009075

	P2R reference	69429
	Maker reference	847046

PLATEAU D'EMBRAYAGE OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 SX, RX 2018 >-847046

	P2R reference	69430
	Maker reference	847047

SPRING DE PLATEAU CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 > APRILIA SX, RX, RS 2006 >-847047

	P2R reference	69495
	Maker reference	847224

WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224

	P2R reference	69431
	Maker reference	847048

SCREW CRUCIFORME (5X35) PLATEAU CLUTCH OEM DERBI SENDA 2005 >/GILERA SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 SX, RX 2018 >-847048

	P2R reference	63602
	Maker reference	000000471105

CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110

	P2R reference	69456
	Maker reference	847083

SPINDLE CLUTCH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 > 2010, RS4 2011 >-847083

	P2R reference	69449
	Maker reference	847075

OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075

	P2R reference	73270
	Maker reference	CM151201

CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201

	P2R reference	69494
	Maker reference	847223

PIVOT DE BUTEE D'EMBRAYAGE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >-847223

	P2R reference	69460
	Maker reference	847090

BRACKET/GUIDE DE CABLE CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX, RX 2006 >-847090
