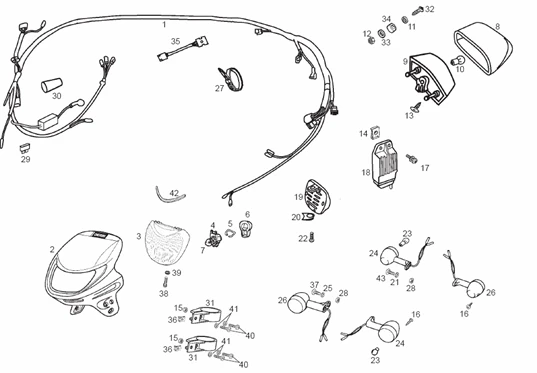

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 4ed E2 2006 (EMEA)

	P2R reference	64390
	Maker reference	00H01046301

HARNESS ELECTRIC OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010/DERBI 50 SENDA 2005 > 2010-00H01046301

	P2R reference	188504
	Maker reference	00H02258873

00H02258873 - DECAL DE PLAQUE PHARE

	P2R reference	188460
	Maker reference	00H02259871

00H02259871 - SCTO.CARC.FARO NGR/BLN.X-RACE 06

	P2R reference	191072
	Maker reference	00H02258872

00H02258872 - DECAL DE PLAQUE PHARE

	P2R reference	191039
	Maker reference	00H02258876

00H02258876 - PLAQUE PHARE

	P2R reference	188461
	Maker reference	00H01012011

00H01012011 - OPTIQUE COMPLETE

	P2R reference	63641
	Maker reference	000037101105

DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110

	P2R reference	63642
	Maker reference	000037101205

SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120

	P2R reference	65003
	Maker reference	00H05703141

PROTECTOR AMPOULE DE HEADLAMP OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 RX, SX-00H05703141

	P2R reference	65942
	Maker reference	219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

	P2R reference	64383
	Maker reference	00H01006321

LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321

	P2R reference	64383
	Maker reference	00H01006321

LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321

	P2R reference	64366
	Maker reference	00H01000371

AMPOULE/LAMPE 12V 21/5W BAY15D OEM PIAGGIO COMMON A LA RANGE-00H01000371

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	63957
	Maker reference	00G01001571

SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	65460
	Maker reference	0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

	P2R reference	63675
	Maker reference	000110213005

00011021300-SCREW

	P2R reference	63895
	Maker reference	00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

	P2R reference	70888
	Maker reference	898891

REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891

	P2R reference	64382
	Maker reference	00H01005311

HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

	P2R reference	188429
	Maker reference	00H01703301

00H01703301 - GLIGNOTEURS AR. DROITE

	P2R reference	63726
	Maker reference	000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

	P2R reference	64595
	Maker reference	00H01703391

REAR LEFT INDICATOR/FRONT RIGHT OEM DERBI 50 SENDA 2004 > 2010/GILERA 50 SMT, RCR 2003 > 2010-00H01703391

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	64373
	Maker reference	00H01001911

00H01001911-FUSIBLE

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	188463
	Maker reference	00H04612841

00H04612841-SPACER

	P2R reference	188462
	Maker reference	861000

861000-BRIDA FIJ. CARCASA FARO X-TR 06

	P2R reference	71820
	Maker reference	AP8150051

AP8150051-SCREW

	P2R reference	63644
	Maker reference	000040535005
	Replaced by référence 71820

00004053500 - VIS A TETE ALLEN 5M80X50

	P2R reference	64376
	Maker reference	00H01002821

SPACER OF REAR LIGHT OU BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT 2006/DERBI SENDA 2000 > 2010/APRILIA RS 2006 > 2010-00H01002821

	P2R reference	65051
	Maker reference	00H06800461

RUBBER MOUNT OF FITTING KIT LAMP REAR OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA 2000 > 2010-00H06800461

	P2R reference	64997
	Maker reference	00H05700481

CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63665
	Maker reference	000080620005

00008062000-BOLT BOMBEE ALLEN 6M100X20

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	63662
	Maker reference	000080516005

00008051600-BOLT BOMBEE ALLEN 5M80X16

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	65000
	Maker reference	00H05701101

00H05701101-BUTEE HEADLAMP

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500
