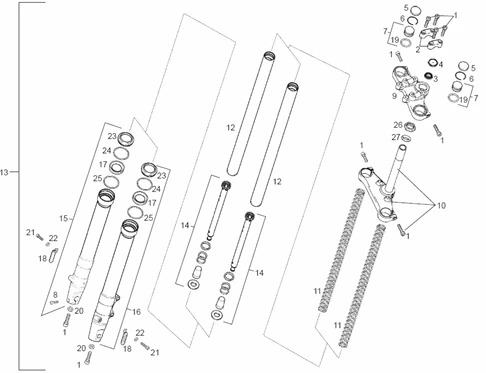

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 4ed E2 2006 (EMEA)

	P2R reference	63576
	Maker reference	000000048305

00000004830-BOLT HEAD HEX. 8M125X30 D933

	P2R reference	188436
	Maker reference	00H00209741

00H00209741 - ENTRETOISE

	P2R reference	64176
	Maker reference	00H00202761

COVER NUT DE PLATINE SUPERIEURE OEM DERBI 50 SENDA 2003 > 2009/GILERA 50 SMT, RCR 2006-00H00202761

	P2R reference	188437
	Maker reference	00H00206601

00H00206601-NUT

	P2R reference	67415
	Maker reference	600136

600136-CAP FORK

	P2R reference	47328
	Maker reference	AP8123697

AP8123697-BUSH OF BUTEE

	P2R reference	67409
	Maker reference	600121

600121 - BOULON FOURCHE

	P2R reference	66340
	Maker reference	323990

SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990

	P2R reference	188438
	Maker reference	00H00221091

00H00221091 - ETRIER FIX. GUIDON

	P2R reference	188439
	Maker reference	00H00220011

00H00220011 - PLATINE INF. AVEC PIVOT

	P2R reference	191021
	Maker reference	00H00219171

00H00219171 - RESSORT DE FOURCHE

	P2R reference	188441
	Maker reference	00H00208191

00H00208191-BARRE DE FORK

	P2R reference	69842
	Maker reference	86121R

FORK OEM PIAGGIO GILERA 50 RCR 2006 >-86121R

	P2R reference	191022
	Maker reference	00H00211531

00H00211531 - TUBE HYDRAULIQUE

	P2R reference	188443
	Maker reference	00H02017031

00H02017031 - BOUCHON DROITE

	P2R reference	191023
	Maker reference	00H02025041

00H02025041 - BOUCHON GAUCHE

	P2R reference	67412
	Maker reference	600126

OIL SEAL (35X47X10) DE FORK MARZOCCHI OEM PIAGGIO APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX-600126

	P2R reference	64616
	Maker reference	00H01802081

CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081

	P2R reference	188445
	Maker reference	00H00202451

00H00202451-WASHER

	P2R reference	63596
	Maker reference	000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	63726
	Maker reference	000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

	P2R reference	67413
	Maker reference	600127

PROTECTOR POUSSIERE DE FORK OEM PIAGGIO 125 X9 2003 > 2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999 > 2005, RX 1995 > 2004-600127

	P2R reference	67411
	Maker reference	600125

600125 - CIRCLIPS

	P2R reference	67414
	Maker reference	600128

600128-WASHER

	P2R reference	63924
	Maker reference	00G00200112

NUT UPPER DE FORK OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00200112

	P2R reference	63868
	Maker reference	00D00200761

COVER POUSSIERE COLONNE STEERING OEM DERBI 50 SENDA 2010 > 2017/GILERA 50RCR, SMT 2006 > 2017-00D00200761
