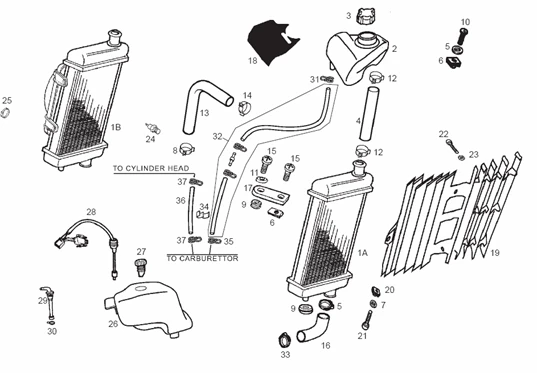

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 4ed E2 2006 (EMEA)

	P2R reference	69934
	Maker reference	86193R

RADIATOR 50 A BOX OEM PIAGGIO 50 GILERA RCR, SMT 2006 > 2010/DERBI SENDA 2000 > 2010-86193R

	P2R reference	70290
	Maker reference	867122

RADIATOR OEM PIAGGIO 50 RX, SX APRILIA/SENDA R, SM X-TREM, X RACE DERBI 2005 > 2010-867122

	P2R reference	64874
	Maker reference	00H03810501

TANK DE REFROIDISEMENT 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2005 >/APRILIA SX, RX 2006 >-00H03810501

	P2R reference	64859
	Maker reference	00H03802501

VASE D'EXPANSION OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 1999 > 2005-00H03802501

	P2R reference	64858
	Maker reference	00H03802472

CAP DE TANK LIQUIDE COOLING OEM DERBI 50 SENDA 2004 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-00H03802472

	P2R reference	64105
	Maker reference	00G03800601

00G03800601 - TUBE POMPE-RADIATEUR

	P2R reference	64852
	Maker reference	00H03801751

CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64860
	Maker reference	00H03802751

00H03802751-CLAMP

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	64871
	Maker reference	00H03808021

HOSE/HOSE COOLING OEM DERBI 50 SENDA 2006 > 2010/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H03808021

	P2R reference	64852
	Maker reference	00H03801751

CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751

	P2R reference	63752
	Maker reference	000920612145

00092061214-SCREW A HEAD RONDE A FENTES C

	P2R reference	64854
	Maker reference	00H03802031

HOSE/HOSE DE COOLING (PUMP-RADIATOR) OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006 > 2010-00H03802031

	P2R reference	64024
	Maker reference	00G02200692

BRACKET DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00G02200692

	P2R reference	64851
	Maker reference	00H03801711

00H03801711-ADHESIF

	P2R reference	151094
	Maker reference	2B005365

GRILLE DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-2B005365

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	64106
	Maker reference	00G03800741

SONDE DECLANCHEMENT DE VENTILATEUR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2009/DERBI SENDA 2000 < 2010/APRILIA SX, RX 2006 > 2009-00G03800741

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	64826
	Maker reference	00H03704081

TANK D'HUILE OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, 125 RX, SX 2008 >-00H03704081

	P2R reference	63919
	Maker reference	00F03710241

CAP TANK D'HUILE OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 >, RS 2006 > 2010-00F03710241

	P2R reference	70338
	Maker reference	867531

JAUGE/SONDE DE NIVEAU OIL OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006/APRILIA SX, RX 2006 > 2017-867531

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64865
	Maker reference	00H03804971

00H03804971 - TUYAU CARBURANT

	P2R reference	64855
	Maker reference	00H03802091

00H03802091 - COLLIER

	P2R reference	64866
	Maker reference	00H03805091

00H03805091-CLAMP FIX WATER TUBE DRD ´ 06

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501

	P2R reference	64853
	Maker reference	00H03801961

HOSE COOLING DU CYLINDER AU CARBU OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2006 >/APRILIA 50 SX, RX, RS-00H03801961

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501
