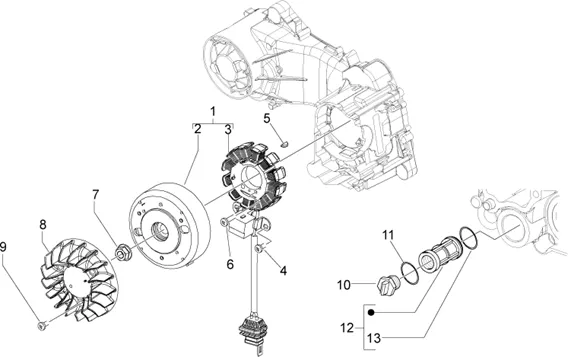

Moteur : 29.35 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/587/Scarabeo_50_4T_4V_Net_2010_29.35.PNG)
1 |
IGNITION OEM PIAGGIO 50 FLY 4T 2011 >, TYPHOON 4T 2011 >, VESPA 50 LX 4T 2009, PRIMAVERA 4T 2013 >, SPRINT 4T 2014 >/APRILIA 50 SR MOTARD 4T 2013 >, SCARABEO 4T 2010 >, SPORT-CITY 4T 2011 >-82798R More informationQuantity required : 1 |
||||||
|
2 |
ROTOR OEM PIAGGIO 50 FLY 4T 2011 >, TYPHOON 4T 2011 >, VESPA 50 LX 4T 2009, PRIMAVERA 4T 2013 >, SPRINT 4T 2014 >/APRILIA 50 SR MOTARD 4T 2013 >, SCARABEO 4T 2010 >, SPORT-CITY 4T 2011 >-638953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/3/img/69073.jpg)
3 |
STATOR OEM PIAGGIO 50 FLY 4T 2011 >, TYPHOON 4T 2011 >, VESPA 50 LX 4T 2009, PRIMAVERA 4T 2013 >, SPRINT 4T 2014 >/APRILIA 50 SR MOTARD 4T 2013 >, SCARABEO 4T 2010 >, SPORT-CITY 4T 2011 >-1A010013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/4/img/70514.jpg)
4 |
SCREW CRUCIFORME (5X14) OEM PIAGGIO COMMON A LA RANGE-873979 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
5 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
6 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
7 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/0/6/2/6/img/160626.jpg)
8 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA-S 4T, VESPA SPRINT 4T/APRILIA 50 SR MOTARD 4T, SCARABEO 4T-1A011563 More informationQuantity required : 1 |
||||||
|
8 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA-S 4T, VESPA SPRINT 4T/APRILIA 50 SR MOTARD 4T, SCARABEO 4T-1A011563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
9 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/5/img/66195.jpg)
10 |
CAP DE VIDANGE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 STALKER, RUNNER/APRILIA 50 MOJITO, SR H2O, SPORT-CYTY-288548 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
11 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/0/img/66400.jpg)
12 |
CREPINE OIL FILTER OEM PIAGGIO 50FLY 4T, LIBERTY 4T, VESPA LX 4T, VESPA-S 4T, ZIP 4T/APRILIA 50 SPORT-CITY 4T, 125 MOJITO, 125 RS, RX, SX, TUONO-431242 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
13 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
