Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V Net 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

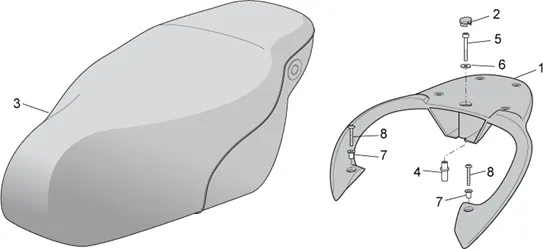

Chassis : 28.10 SELLE-PORTE BAG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/587/Scarabeo_50_4T_4V_Net_2010_28.10.PNG)
1 |
AP8179859-PORTAPACCHI LUNGO GREY More informationQuantity required : 1 |
||||||
|
2 |
AP8179860-CAP PORTAPACCHI More informationQuantity required : 1 |
||||||
|
3 |
AP8229455 - SELLE LONGUE GRISE More informationQuantity required : 1 |
||||||
|
4 |
AP8225371-BOUS CENTR DOOR-BAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
5 |
SCREW BTR (6X50) OEM PIAGGIO COMMON A LA RANGE-AP8150202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
6 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
|
7 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
