Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V Net 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

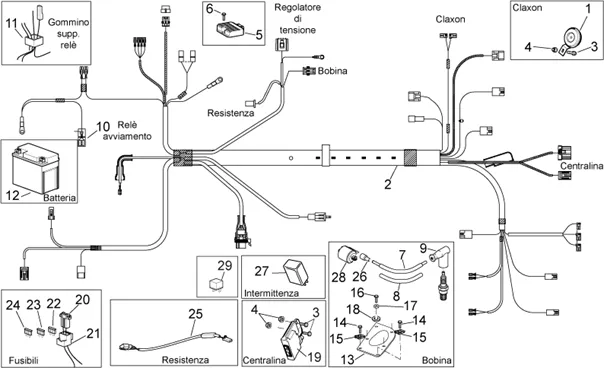

Chassis : 28.26 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/587/Scarabeo_50_4T_4V_Net_2010_28.26.PNG)
1 |
58238R-HORN 12 V-CC More informationQuantity required : 1 |
||||||
|
2 |
893885 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/4/img/67944.jpg)
5 |
REGULATEUR DE TENSION OEM PIAGGIO 50 TYPHOON, NRG 2018 >, VESPA PRIMAVERA 4T 2013 >, SPRINT 4T 2013 >/GILERA SMT 2018 >/DERBI SENDA 2018 >/APRILIA RS4, SX, RX 2018 >-641788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
7 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
|
8 |
CM079401-INSULATING PLAIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/5/img/67835.jpg)
9 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2011 >-6394986 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
10 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
11 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
12 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
|
13 |
893977-FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
14 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/9/img/67279.jpg)
16 |
SCREW CRUCIFORME (3X20) OEM PIAGGIO COMMON A LA RANGE-583236 More informationQuantity required : 4 |
||||||
|
17 |
AP8152502-DADO M3 More informationQuantity required : 4 |
||||||
|
18 |
012554-WASHER More informationQuantity required : 4 |
||||||
|
19 |
CM088403-DISPOSITIF CENTRE ELECTR. More informationQuantity required : 1 |
||||||
|
20 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 2 |
||||||
|
21 |
AP8220342 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/8/8/3/img/62883.jpg)
22 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-CM225707 More informationQuantity required : 2 |
||||||
|
23 |
CM225710-FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
24 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/1/img/67261.jpg)
25 |
RESISTOR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-582619 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/1/img/65661.jpg)
26 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-071671 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
27 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/7/img/67207.jpg)
28 |
BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9, GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC-58120R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
29 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
