Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V E2 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

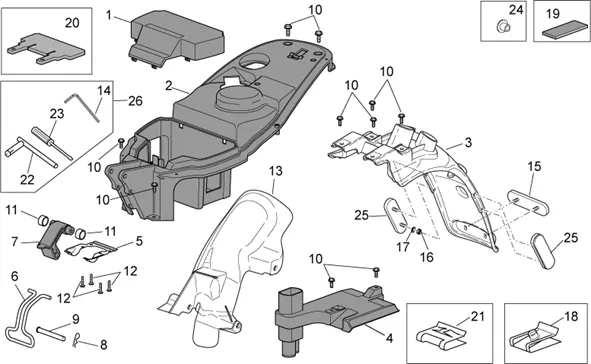

Chassis : 28.12 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/590/Scarabeo_50_4T_4V_E2_2009_28.12.PNG)
1 |
AP8258171-COVER BATTERY More informationQuantity required : 1 |
||||||
|
2 |
AP8258216-LOGEMENT SOUS-SEAT More informationQuantity required : 1 |
||||||
|
3 |
AP8156260-PROTECTOR-MUD More informationQuantity required : 1 |
||||||
|
4 |
AP8226648-DOOR-OBJETS More informationQuantity required : 1 |
||||||
|
5 |
AP8232799-LATCH CHARNIERE More informationQuantity required : 1 |
||||||
|
6 |
AP8232801-CHARNIERE REAR SEAT More informationQuantity required : 1 |
||||||
|
7 |
AP8232800-CHARNIERE FRONT SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/3/img/72133.JPG)
8 |
GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431 More informationQuantity required : 1 |
||||||
|
9 |
AP8221185-PIVOT CHARNIERE SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 10 |
||||||
|
11 |
AP8221186-BUSH CHARNIERE SEAT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
12 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
|
13 |
851764 - GUARDE-BOUE ARR More informationQuantity required : 1 |
||||||
|
14 |
852391-CLEF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
15 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
17 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
19 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
|
20 |
AP8104427-PROTECTOR CAOUTCH. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
21 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
|
22 |
AP8140910-TOOLS KEY More informationQuantity required : 1 |
||||||
|
23 |
AP8140909 - TOURNEVIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
24 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
25 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 2 |
||||||
|
26 |
852691 - TROUSSE A OUTILS More informationQuantity required : 1 |
